Custom | Econ OEM Batch Pump

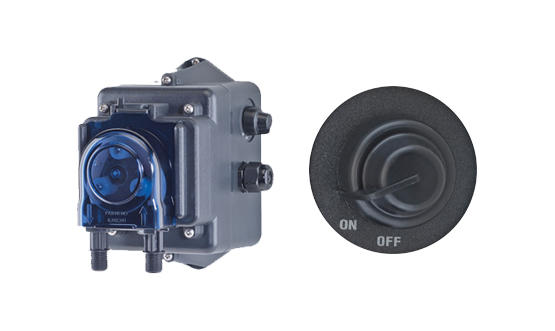

ECON OEM Batch Pump

Inject a pre-set amount with the Econ OEM Batch Pump.



Output
Up to 50 gallons per day, pressures to 80 psi.
Up to 189.3 liters per day, pressures to 5.5 bar.

Need Answers?

Inquiry

Stenner's custom Econ OEM Batch pump is pre-programmed for your application.

The OEM batch pump is factory programmed to run a specific length of time when manually activated by an integral switch or it can be designed to activate with an input signal. The customer selects the pump run time from 0.1 seconds to 24 hours per activation. The pre-set fluid volume choices are up to 50 gallons per day and pressures to 80 psi (up to 189.3 liters per day / pressures to 5.5 bar).

The pump is supplied with a 24 VDC brushless motor. If selecting a pump with an internal power supply (100-240 VAC, 50/60Hz), the power cord is customizable. The pump is also available with a wall adapter power supply.

Features

  • Patented Quick Release Pump Head; effortless tube replacement without tools
  • Anti-siphon 3 point roller design
  • Dual bearing support output shaft
  • Serviceable liquid end, gear train & motor
  • Suitable for indoor/outdoor use

Options

  • Select custom color
  • Optional tube materials
  • Agency approvals vary by model

Pump Dimensions

Econ OEM Batch Pump Dimensions

Shipping Weight: 4 lbs (1.8 kg)

Box Dimensions: 8 x 7 x 10 in. (20 x 18 x 25 cm)
