Variable & Fixed Speed | Econ VX and FX Series

Econ VX and FX Series

The Econ VX and FX series are compact, peristaltic pumps offering simple on and off metering for general light duty applications.

Output

Econ VX   0.8 to 38.8 gpd, 25 psi maximum
                 1.7 to 23.5 gpd, 80 psi maximum

Econ FX   7.4, 14.0, 24.8, 38.8 gpd, 25 psi maximum
                14.0 or 23.5 gpd, 80 psi maximum

Need Answers?

Item Number
Inquiry
Downloads

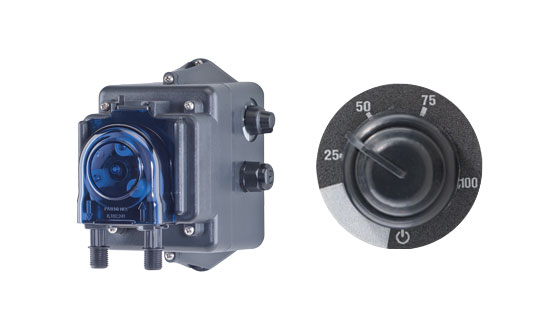

The Econ VX has an adjustable potentiometer and the FX is a fixed speed pump.

Both the Econ VX and FX offer a totally enclosed design with a brushed motor for light duty or general intermittent applications. The pumps work well for fluid transfer, sampling or injecting a variety of solutions. Both pumps are designed with the patented quick release pump head for effortless and fast tube replacement without tools. The pump tubes are manufactured as a single piece construction. The tube fitting is overmolded to the tube material for a stronger connection.

The Econ VX is a variable speed pump and features an adjustable potentiometer. Choose from  a selection of six different models with output ranges of 0.8 to 38.8 gallons per day. Each model in the VX series is differentiated by the output and the pressure range.

The Econ FX is identical to the VX except it is a fixed speed pump without an adjustment. The pump runs at full speed when power is applied. The FX outputs are the equivalent to the maximum output of the VX pump. Each model in the FX series is differentiated by the output and pressure range.

The pumps are wall mountable or select one of the optional mounting accessories. The Econ VX or FX is offered as a Tank System; the pump is shipped pre-mounted to a 7.5, 15 or 30 gallon solution tank. The pumps are cULus for indoor and outdoor use; CE IP44 is also available.

Unique Stenner Features

  • Effortless tube replacement with patented quick release pump head
  • Solid one piece tube construction
  • Mounting options

Advantages of Stenner's Peristaltic Pumps

  • Solution is not in contact with moving parts and runs through a food grade pump tube.
  • Pump head requires no valves, allows for easy maintenance.
  • Self-priming against maximum working pressure, foot valve not required.
  • Pump does not lose prime or vapor lock.
  • Pumps off-gassing solutions and can run dry.
  • Output volume is not affected by back pressure.

Product Manual
Flyer
Chemical Resistance Guide

pdficon_smallTo view these documents, you need Adobe Acrobat Reader. You can download a free copy from the Adobe website.

Econ VX – Variable Speed Flow Rate Output Chart

Item No.
Prefix
Pump
Tube
Roller
Assembly

E10VXAAWhite
E10VXBBWhite
E20VXBBWhite
E20VXCCWhite
E10VXHHBlack
E20VXHHBlack
Gallons
per Day
Gallons
per Hour
Ounces
 per Hour
Ounces
per Minute
Pressure
max. psi
Liters
per Day
Liters
per Hour
Milliliters
per Hour
Milliliters
 per Minute
Pressure
max.bar
Approximate Output @ 50/60Hz
0.8-7.40.0-0.30.4-39.50.0-0.7253.0-28.00.1-1.2125.0-1166.72.1-19.41.7
1.2-14.00.1-0.66.4-74.70.1-1.2254.5-52.90.2-2.2188.0-2204.23.1-36.71.7
1.6-24.80.1-1.08.6-132.30.4-2.2256.0-93.70.3-3.9250.0-3904.24.2-65.11.7
4.4-38.80.2-1.623.4-206.90.4-3.42516.6-146.70.7-6.1692.0-6112.511.5-101.91.7
1.7-14.00.1-0.69.1-74.70.2-1.2806.4-52.90.3-2.2267.0-2204.24.5-36.75.5
2.7-23.50.1-0.1.014.5-125.30.2-2.18010.2-88.80.4-3.7425.0-3700.07.1-61.75.5

Econ FX – Fixed Flow Rate Output Chart

Item No.
Prefix
Pump
Tube
Roller
Assembly
E10FXAAWhite
E10FXBBWhite
E20FXBBWhite
E20FXCCWhite
E10FXHHBlack
E20FXHHBlack
Gallons
per Day
Gallons
per Hour
Ounces
per Hour
Ounces
per Minute
Pressure
max. psi
Liters
per Day
Liters
per Hour
Milliliters
per Hour
Milliliters
per Minute
Pressure
max. bar
Approximate Output @ 50/60Hz
7.40.339.50.72528.01.21166.719.41.7
14.00.674.71.22552.92.22204.236.71.7
24.81.0132.32.22593.73.93904.265.11.7
38.81.6206.93.525146.76.16112.5101.91.7
14.00.674.71.28052.92.22204.236.75.5
23.51.0125.32.18088.83.73700.061.75.5

NOTE: Injection check valve included with pumps rated 80 psi (5.5 bar) maximum.

exclamationNOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
Specifications
Output ControlEcon VX: adjustable potentiometer
Econ FX: fixed speed
Maximum Working Pressure80 psi (5.5 bar) E10VXH, E20VXH, E10FXh, E20FXH
25 psi (1.7 bar) E10VXA, E10VXB, E20VXB, E20VXC.
                        E10FXA, E10FXB, E20FXB, E20FXC
Maximum Operating Temperature104°F (40°C)
Maximum Suction Lift25 ft (7.6 m) vertical lift, based on water
Motor Type24 VDC, brushed
Approximate Shaft RPME10:26, E20:44
Duty CycleContinuous
Motor Voltage120V 60Hz, 230V 50Hz
Power Cord TypeSJTOW fro NEMA plugs, HO5RN-F for CE, HO5VV-F for
export non-agency
Power Cord Plug End3-prong, 120 V, (NEMA 15P)
ClassificationIndoor / Outdoor
Materials of Construction
All HousingsPolycarbonate
Pump Tube & Check Valve DuckbillSantoprene®*, FDA approved
Pump Head RollersPolyethylene
Suction/Discharge Tubing
and Ferrules
Polyethylene, FDA approved
Tube and Injection FittingsPVC or Polypropylene, NSF listed
Connecting NutsPVC, NSF listed
Suction Line Strainer and CapPVC or Polypropylene, NSF listed, with Ceramic Weight
All FastenersStainless steel

Agency Listings

Agency logo UL and CE IP44

* Santoprene® is a registered trademark of Exxon Mobil Corporation.

Pump Dimensions

Econ VX dimensional drawing
Shipping Weight:
4 lbs (1.8 kg)

Box Dimensions: 8 x 7 x 10 in. (20 x 18 x 25 cm)
