Time adjustable controller for proportional injection with Classic Series pump


Proportional Injection

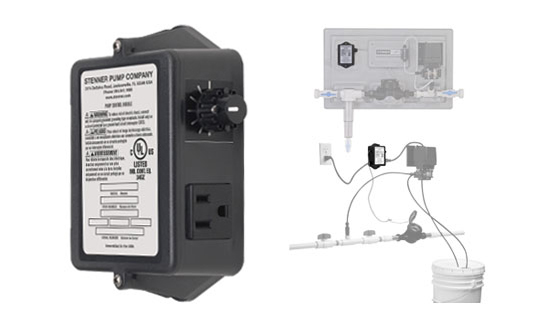

The PCM is a time adjustable controller utilized with the Classic Series Single Head Fixed Output Pump and a pulsing dry contact water meter for applications requiring proportional injection. The water meter sends a signal to the PCM and the PCM actuates the pump to deliver the desired dose based upon the system flow.

Features

Stenner's PCM Technical Data

Four Models 120V 60Hz
Part Number Operating Range in Seconds
PCM1 0.1 to 1.0 Second
PCM5 0.5 to 5.0 Seconds
PCM10 1.0 to 10.0 Seconds
PCM20 2.0 to 20.0 Seconds

The PCM operating time range is factory set according to the model selected but can be converted to any of the other time ranges without have to purchase a different model. The time range is converted by simply changing the position of the jumpers on the printer circuit board under the PCM’s cover.

PCM

The PCM is also one of the components in the Proportional Injection System that also includes the fixed output pump and a 3/4″ plastic water meter pre-mounted on a heavy duty panel. Purchasing the items separately offers flexibility with the water meter selection; available in plastic or stainless steel with a variety of sizes and pulse rates to customize your own proportional feed installation.



Flow Rate Outputs

Technical Data



Materials of Construction
Housing Polycarbonate
Timer Microcontroller with triac output
Turndown Ratio 10:1
Pump Head Rollers HDPE
Input Signal Non-voltage dry contact, water meter
Reset Time Immediate
Minimum Signal Durations 10 milliseconds
Input Electrical 120V 60Hz
No Load Current 0.45mA AC maximum
Output Electrical Maximum device load, 1.8 amp at 120V

Agency Listings

AGENCY LISTINGS



PCM Dimensions

Stenner's PCM Dimensions

Shipping Weight: 2.1 lbs (1 kg)

Box Dimensions: 9 x 8 x 7 in. (23 x 23 x 18 cm)

Dimensions & weight
