S10P Series

Robust flow activated peristaltic pump

Highlights

  • Activated by dry contact or 12-24 VAC/VDC signal
  • Operates at a set time, speed or flow rate output
  • Tube replacement without tools

Steady Solution Distribution with 10 PPG Mode

The S10P Series is a peristaltic metering pump activated by a water meter, control valve, flow switch or any control equipment that responds to water flow. The control equipment is wired to the pump input terminals to accept a dry contact or 12-24 VAC/VDC signal. The pump runs at a set time, a set speed or a set flow rate output according to the mode of operation selected. The flow rate outputs are up to 30 gallons per day at 100 psi maximum and the turndown is 10:1 and in the 10 PPG mode it is 4:1.

The control panel displays one of four operating modes, Seconds, Flow Switch, Auxiliary or 10 PPG and the percent setting for each. The functions are easy to program on the six button control pad with a backlit LCD window. Two buttons are required for operation and the keypad will automatically lock if it remains idle for one minute.

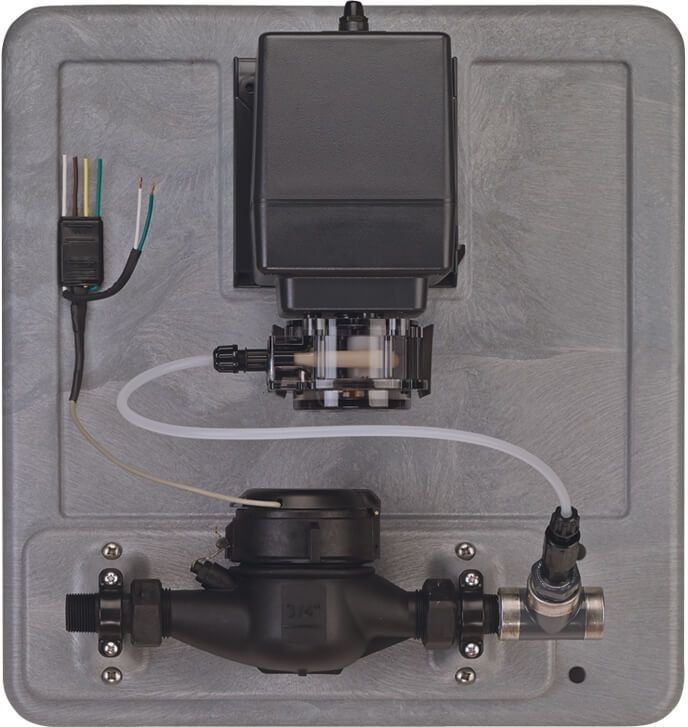

When using the 10 PPG mode with a 10 PPG water meter, chemical is dispensed ten times per gallon for steady distribution. Also with the 10 PPG mode, the mixing tank* can be eliminated for applications not requiring contact time.

*Mixing and retention tanks are still required for all bacterial and oxidation applications.

Features

Flashing Indicators Prime, Standby, Level, Leak, Change, Signal (excludes 10 PPG mode), Keypad Locked

Leak Detect detects leak, pump shuts off, LEAK flashes on display, relay indication to another device

Level flashes on display when pump receives a dry contact to the level input from a level sensing device detecting low solution in the tank

Signal Repeater repeats the dry contact to another device in the Seconds, Flow Switch and 10 PPG modes of operation

Time Modes

Pump Run Hours
Running total of the pump run hours, up to 65,000 hours, not resettable
Tube Run Hours
Total hours the pump tube has been in service
Tube Change Hours
Set the desired hours for the tube to run. When hours are exceeded, display flashes CHANGE as a tube replacement reminder
Reset Tube Hours
Resets Tube Run Hours to zero

Modes Of Operation

10 PPG
The 10 PPG mode is used with a 10 PPG dry contact water meter and with process flows from 0.1 to 14.0 gallons per minute.  The pump runs at the programmed flow rate output for each pulse. The flow rate output is adjustable from 50% to 100% in 5% increments. The connection is not polarity sensitive.

SECONDS
In the Seconds mode, the pump receives a dry contact from a water meter, control valve or any another type of  control equipment that responds to flow. The pump runs for a programmed amount of  time for each pulse. The run time is adjustable from 0.1 to 60 seconds.

FLOW SWITCH
In the Flow Switch mode, the pump accepts a dry contact from a 2 wire flow switch and runs at the programmed speed for as long as it receives the contact. The pump speed is adjustable from 10% to 100% in 1% increments.

AUXILIARY
In the Auxiliary mode, the pump accepts a 12-24 VAC/VDC signal from a control valve or another type of control equipment that responds to flow. The pump runs at a programmed speed for as long as it receives the signal. The speed is adjustable from 10% to 100% in 1% increments.

Advantages of Stenner Peristaltic Pumps

  • Tube replacement without tools
  • Solution is not in contact with moving parts
  • Pump head requires no valves, allows for easy maintenance
  • Self-priming against maximum working pressure, foot valve not required
  • Pump does not lose prime or vapor lock
  • Pumps off-gassing solutions and can run dry
  • Output volume is not affected by back pressure



Flow Rate Outputs

100 psi (6.9 bar) max.
Item No.
Prefix
Pump Tube  Turndown
Ratio
Turndown
@ 10 PPG
Gallons
per Day
Gallon
per Hour
Ounces
per Hour
Ounces
per Minute
Liters per
Day
Liters per
Hour
Milliliters
per Hour
Milliliters
per Minute
Approximate Maximum Output @ 50/60Hz – 10:1 Turndown
S3P01 1 10:1 4:1 5.0 0.21 27.0 0.44 19.0 0.79 789.0 13.0
S3P02 2 10:1 4:1 17.0 0.71 91.0 1.51 64.0 2.68 2681.0 45.0
S3P06 6 10:1 4:1 30.0 1.25 160.0 2.67 114.0 4.73 4732.0 79.0
Notice
NOTICE: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.

Technical Data

Specifications
Flow Rate Output Control Six button control panel with LCD display
Reproducibility +/- 2%
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Operating Temperature 104°F (40°C)
Maximum Altitude 6562 ft.
(2000 m)
Maximum Suction Lift 25 ft (7.6 m) vertical lift, based on water
Motor Type 24 VDC, brushless
Shaft rpm (average maximum) 60
Duty Cycle Continuous
Maximum Viscosity 1500 Centipoise
Motor Voltage (Amp Draw) 120V 60Hz
1PH (0.6)
Power Cord Type 120V 60Hz
SJTOWA
Power Cord Plug End 120V 60 Hz
5-15P
Power Cord Length 6 ft. (1.8 m)
Classification Indoor/Outdoor



Materials of Construction
All Housings Polycarbonate
Pump Tube & Check Valve Duckbill Santoprene®* (FDA approved)
Pump Head Rollers Polyethylene
Suction/Discharge Tubing, Ferrules Polyethylene (FDA approved)
Tube and Injection Fittings PVC or Polypropylene (both NSF listed)
Connecting Nuts PVC or Polypropylene (both NSF listed)
Suction Line Strainer and Cap PVC or Polypropylene (both NSF listed); ceramic weight
All Fasteners Stainless steel
Leak Detect Components Hastelloy®**

* Santoprene® is a registered trademark of Exxon Mobil Corporation.
**Hastelloy® is a registered trademark of Haynes International, Inc.

Agency Listings



Pump Dimensions

Box Dimensions

14 x 9 x 10 in. (35 x 23 x 24 cm)

Shipping Weight

9 lbs (3.7 kg)



Dimensions & weight
