Pumps | Classic Series

Double Head Adjustable

Electromechanical peristaltic metering pumps

For over 69 years, the versatile Classic Series remains a popular choice for installers. The pump is easy to install, service or convert to another model without purchasing another pump. Injection can be directly into the water line and can also be activated by a pressure switch or controller.

Explore Models in the Classic Series

Single Head Adjustable

Double Head Adjustable

Single Head Fixed

Double Head Fixed

The Double Head Adjustable Output pump is one of the varieties in the Classic line.

The double head adjustable output pump is built the same way as the single head adjustable with the addition of another pump head that doubles the output. The double head pump provides twice the output or can inject two compatible solutions at the same ratio.

The 100 models run at 26 RPM, and the 170 models run 44 RPM. The output is determined by the rpm of the motor gears, the setting on the feed rate control and the pump tube size. The feed rate control has an external dial ring. The dial ring is manually adjusted and is labeled L to 10 representing an output range from 5% to 100% or 20:1 turndown in 2.5% increments.

Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or Contact Us.

Flow Rate Outputs

Technical Data

Parts

Exploded View

Flow Rate Outputs

25 psi (1.7 bar) max. | Approximate 20:1 turndown, 2.5% increments

Pump Prefix	Model	Pump Tube	Gallons per Day	Gallons per Hour	Ounces per Minute	Liters per Day	Liters per Hour	Milliliters per Minute	Liters per Day	Liters per Hour	Milliliters per Minute
100JL1	100DM1	1	0.3-6.0	0.01-0.25	0.03-0.53	1.1-22.7	0.05-0.95	0.76-15.76	0.9-18.2	0.04-0.76	0.61-12.64
100JL2	100DM2	2	1.0-20.0	0.04-0.83	0.09-1.78	3.8-75.7	0.16-3.15	2.64-52.57	3.0-60.6	0.13-2.53	2.11-42.06
100JL3	100DM3	3	2.2-44.0	0.09-1.83	0.19-3.91	8.3-166.5	0.35-6.94	5.76-115.63	6.6-133.2	0.28-5.55	4.58-92.50
100JL4	100DM4	4	3.5-70.0	0.15-2.92	0.31-6.22	13.2-265.0	0.55-11.04	9.17-184.03	10.6-212.0	0.44-8.83	7.36-147.22
100JL5	100DM5	5	5.0-100.0	0.21-4.17	0.44-8.88	18.9-378.5	0.79-15.77	13.13-262.88	15.1-302.8	0.63-12.61	10.49-210.28
170JL1	170DM1	1	0.5-10.0	0.02-0.42	0.04-0.89	1.9-37.9	0.08-1.58	1.32-26.32	1.5-30.3	0.06-1.26	1.04-21.04
170JL2	170DM2	2	1.7-34.0	0.07-1.42	0.15-3.02	6.4-128.7	0.27-5.36	4.44-89.38	5.1-102.6	0.21-4.29	3.54-71.55
170JL3	170DM3	3	4.0-80.0	0.17-3.33	0.35-7.11	15.1-302.8	0.63-12.62	10.49-210.28	12.1-242.2	0.50-10.09	8.40-168.22
170JL4	170DM4	4	6.0-120.0	0.25-5.0	0.53-10.66	22.7-454.2	0.95-18.93	15.76-315.42	18.2-363.4	0.76-15.14	12.64-252.36
170JL5	170DM5	5	8.5-170.0	0.35-7.08	0.76-15.1	32.2-643.5	1.34-26.8	22.36-446.88	25.7-514.8	1.07-21.45	17.92-357.50
			Approximate Output @ 60Hz						Approximate Output @ 50Hz

100 psi (6.9 bar) max. | Approximate 20:1 turndown, 2.5% increments

Pump Prefix	Model	Pump Tube	Gallons per Day	Gallons per Hour	Ounces per Minute	Liters per Day	Liters per Hour	Milliliters per Minute	Liters per Day	Liters per Hour	Milliliters per Minute
100JH1	100DMHP5	1	0.3-6.0	0.01-0.25	0.03-0.53	1.1-22.7	0.05-0.95	0.76-15.76	0.9-18.2	0.04-0.76	0.61-12.64
100JH2	100DMHP20	2	1.0-20.0	0.04-0.83	0.09-1.78	3.8-75.7	0.16-3.15	2.64-52.57	3.0-60.6	0.13-2.53	2.11-42.06
170JH1	170DMHP9	1	0.5-10.0	0.02-0.42	0.04-0.89	1.9-37.9	0.08-1.58	1.32-26.32	1.5-30.3	0.06-1.26	1.04-21.04
170JH2	170DMHP34	2	1.7-34.0	0.07-1.42	0.15-3.02	6.4-128.7	0.27-5.36	4.44-89.38	5.1-102.6	0.21.4.29	3.54-71.55
			Approximate Output @ 60Hz						Approximate Output @ 50Hz

Notice: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs

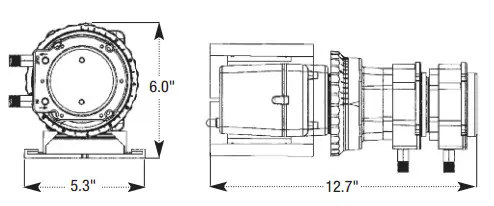

Technical Data

Specifications

Flow Rate Output Control

External dial ring

Reproducibility

+/- 2%

Maximum Working Pressure

25 psi (1.7 bar), 100 psi (6.9 bar)

Maximum Operating Temperature

125°F (52°C)

Maximum Suction Lift

25 ft (7.6 m) vertical lift, based on water

Motor Type

1/30 HP, shaded pole, class B

Duty Cycle

Continuous

Maximum Viscosity

1500 Centipoise

Motor Voltage (Amp Draw)

120V 60Hz 1PH (1.7); 220V 60Hz 1PH (0.9);
230V 50Hz 1PH (0.9); 250V 50Hz 1PH (0.9)

Power Cord Type

120V 60Hz; 220V 60Hz SJTOW;
230V 50Hz, 250V 50Hz H05VV-F

Power Cord Plug End

120V 60Hz NEMA 5-15P; 220V 60Hz NEMA 6-15P; 230V 50Hz CEE7/7; 250V 50Hz CEE7/7

Cord Length

6 ft (1.8 m)

Classification

Indoor and suitable for outdoor when installed with a Stenner Rain Roof part number MP90000

Materials of Construction

All Housings

Polycarbonate

Pump Tube

Santoprene®* (FDA approved) or Versilon®**

Check Valve Duckbill

Santoprenee®* (FDA approved) or Pellethane®†

Pump Head Rollers

Polyethylene

Roller Bushings

Oil impregnated bronze

Suction/Discharge Line, and Ferrules

Polyethylene (FDA approved)

Tube & Injection Fittings

PVC or Polypropylene (both NSF listed)

Connecting Nuts

PVC or Polypropylene (both NSF listed)

3/8″ Adapter

PVC or Polypropylene (both NSF listed)

Suction Line Strainer  and Cap

PVC or Polypropylene (both NSF listed); ceramic weight

All Fasteners

Stainless steel

Pump Head Latches

Polypropylene

Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or Contact Us.

* Santoprene®is a registered trademark of Celanese International Corporation. 
** Versilon®is a registered trademark of Saint-Gobain Performance Plastics. 
† Pellethane® is a registered trademark of Lubrizol Advanced Materials, Inc.
