Econ FP
Compact flow activated peristaltic pump
Econ FP Series
The Econ FP is flow activated from a water meter, control valve, flow switch or from any control equipment that responds to flow. The pump accepts a dry contact or a 12-24 VAC/VDC signal and runs at a set time or a set speed and is adjustable from 10% to 100% in 1% increments. The functions are easy to program on the six-button control pad with a backlit LCD window. To assist against tampering, two buttons are required for operation and the keypad will automatically lock if it remains idle for one minute.
The pump features an enclosed housing, is wall-mountable, and carries cULus for indoor and outdoor use. The pump head has a patented quick release design for tube replacement without tools. It is also offered in 24VDC for installations where standard voltage is unavailable.
The Econ FP is perfect for light-duty applications such as drinking water disinfection or pH adjustment for for residential private water wells and is available as a pre-assembled Meter System or Tank System.
The Tank System has a 7.5, 15 or 30 gallon capacity and is available in UV gray for outdoor installations or translucent white.
The Meter System includes a dry contact 3/4″ or 1″ water meter and all components are mounted on a heavy duty panel.
MODES of OPERATION
FLOW SWITCH: The pump will accept a dry (non-voltage) contact signal from a 2 wire flow switch and will run at the set speed for as long as it receives the dry contact. View programming video
AUXILIARY 12-24 VAC/VDC : The pump can accept a 12-24 VAC/VDC signal from a control valve or another type of flow responsive control equipment and will run at a set speed for as long as it receives the signal. View programming video
SECONDS: The pump can receive a dry (non-voltage) contact signal from a water meter or control valve and will run for a set time in response to receiving the signal. There are five operating time ranges and the maximum time is displayed in the control panel.
Flow Rate Outputs
80 psi (5.5 bar) maximum
| Pump Prefix | Pump Tube | Roller Assembly | Gallons per Day | Gallons per Hour | Ounces per Hour | Ounces per Minute | Liters per Day | Liters per Hour | Milliliters per Hour | Milliliters per Minute |
|---|---|---|---|---|---|---|---|---|---|---|
| Approximate Maximum Output @ 50/60Hz – 10:1 Turndown | ||||||||||
| E10PLM | M | White | 0.49 | 0.02 | 2.6 | 0.04 | 1.84 | 0.08 | 76.7 | 1.3 |
| E10PHM | M | White | 0.83 | 0.03 | 4.4 | 0.07 | 3.14 | 0.13 | 130.8 | 2.2 |
| E20PHM | M | White | 1.41 | 0.06 | 7.5 | 0.13 | 5.36 | 0.22 | 223.2 | 3.7 |
| E20PHF | F | White | 4.5 | 0.19 | 24.0 | 0.40 | 17.01 | 0.71 | 708.8 | 11.8 |
| E20PHG | G | Black | 16.0 | 0.67 | 85.3 | 1.42 | 60.48 | 2.52 | 2520.0 | 42.0 |
| E20PHJ | J | Black | 24.0 | 1.0 | 128.0 | 2.13 | 91.0 | 3.79 | 3785.0 | 63.0 |
| E20PHH | H | Black | 30.0 | 1.25 | 160.0 | 2.67 | 113.40 | 4.73 | 4725.0 | 78.8 |
Notice: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs
Technical Data
Specifications

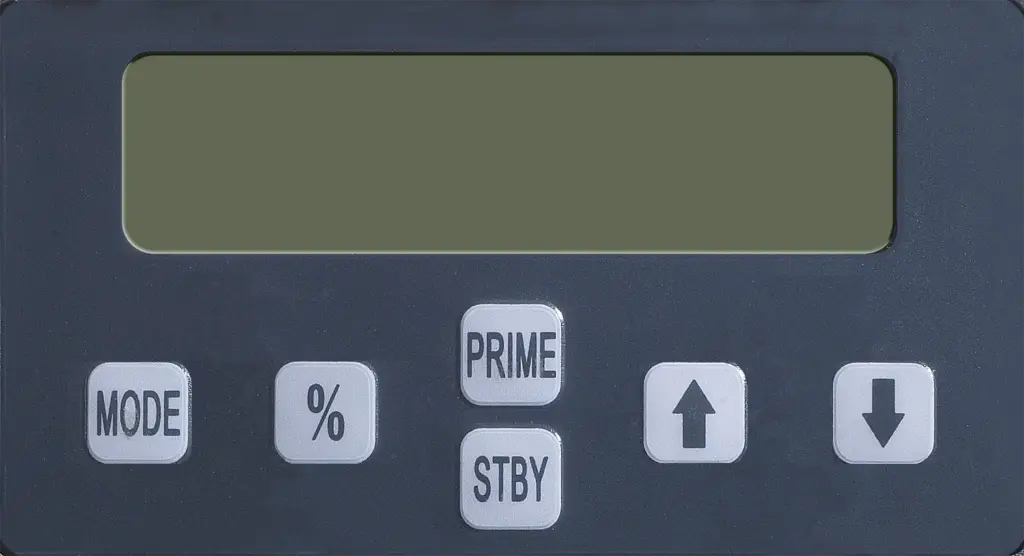

Six button control panel with LCD display
+/- 2%
80 psi (5.5 bar)
104°F (40°C)
25 ft (7.6 m) vertical lift, based on water
24 VDC, brushless
60
Continuous
100 Centipoise
120V 60Hz (0.25A); 230V 60Hz (0.17A); 230v 50Hz (10W); 24VDC (0.85A)
120V 60Hz; 230v 60Hz SJTOW; 230V 50Hz HO5RN-F; 24VDC pigtail
120V 60Hz NEMA 5-15P; 230V 60Hz NEMA 6-15P; 230V 50Hz CEE7/7; 24VDC pigtail
6 ft (1.8 m); 10 ft (3.05 m); 24VDC Pigtail 1 ft (30.5 cm)
Indoor/Outdoor
Materials of Construction
Polycarbonate
Santoprene®* (FDA approved)
Polyethylene
Polyethylene (FDA approved)
PVC or Polypropylene (both NSF listed)
PVC or Polypropylene (both NSF listed)
PVC or Polypropylene (both NSF listed); ceramic weight
Stainless steel
Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or Contact Us.
* Santoprene® is a registered trademark of Celanese International Corporation.
Pump Dimensions
Agency Listings
Box Dimensions
8 x 8 x 10 in. (21 x 21 x 25 cm)
Shipping Weight
4 lbs (1.7 kg)

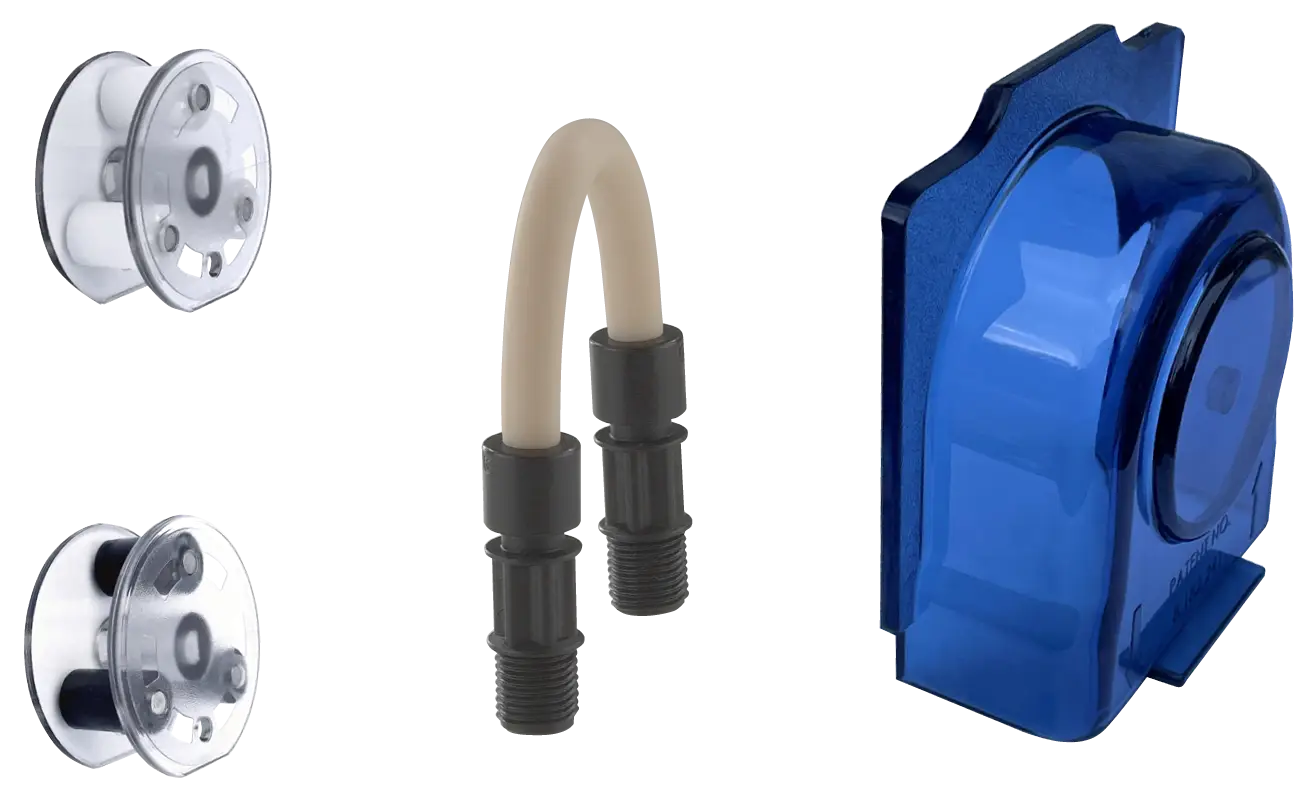

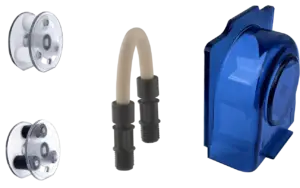

Parts
Gear Kit
(gears, spacer, screws & Aquashield)
Gear Case Front Cover
(includes pump head cover)
EC330
Cover Screw B
Key Features
-
Activated by dry contact or 12-24 VAC/VDC signal
-
Operates at a set time or speed
-
10:1 turndown, 1% increments
-
Tube replacement without tools
-
Tank System or Meter System available
