Econ T
Programmable for automatic scheduled injection
Explore Pumps in the Econ Timer Series
The Econ T has an integral timer for automatic injection according to a customized dosing schedule in a compact pump for light duty applications. Equipped with an enclosed housing, the pump is wall mountable or select from the optional mounting accessories.

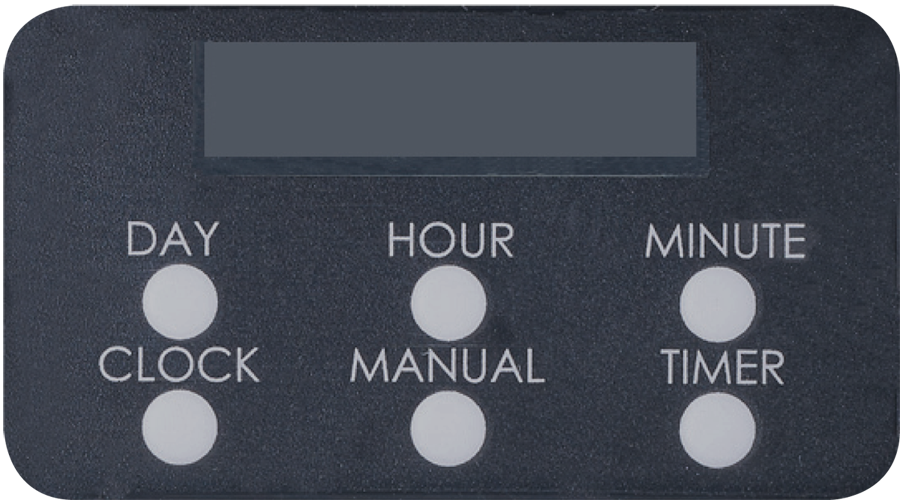

The control panel has an LCD display with indicators representing the days of the week, operational mode and the event. During operation the panel displays the current day, time, and mode of operation. There is a programmable clock in a 24-hour format with a battery backup to maintain the internal time and programmed event settings.
There are 24 independent programmable on/off events within a 7-day period. The minimum is 1 minute up to a maximum of 23 hours and 59 minutes within each programmed event. Each event can be programmed for a specific ON time and a specific OFF time in increments by hour and minute.

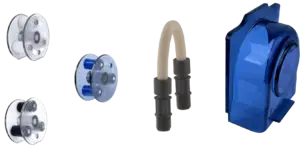

- Tube replacement without tools with patented quick release pump head.
- Solid one piece tube construction.
- Optional mounting accessories available.
- Also available in 24VDC
The Econ T is offered as a Tank System; the pump is shipped pre-mounted to a 7.5, 15 or 30 gallon solution tank in white or UV gray.
The pump is approved by cULus for indoor and outdoor use and listed for NSF 61 and 372. The 25 psi models are tested and certified by Intertek to Standard ANSI/NSF 50, equipment for swimming pools, spas, hot tubs, and other recreational water facilities.
Econ Pump General Installation Video
Econ Pump Tube Replacement Video
Flow Rate Outputs
25 psi (1.7 bar) max.
| Pump Prefix | Pump Tube | Roller Assembly | Gallons per Day | Gallons per Hour | Ounces per Hour | Ounces per Minute | Liters per Day | Liters per Hour | Milliliters per Hour | Milliliters per Minute |
|---|---|---|---|---|---|---|---|---|---|---|
| Approximate Output @ 60Hz | ||||||||||
| E10T1A | A | White | 2.5 | 0.10 | 13.2 | 0.22 | 9.5 | 0.39 | 396.0 | 6.60 |
| E10T2A | A | White | 5.0 | 0.21 | 26.4 | 0.44 | 18.9 | 0.79 | 786.0 | 13.10 |
| E10T2B | B | White | 8.5 | 0.35 | 45.6 | 0.76 | 32.2 | 1.34 | 1338.0 | 22.30 |
| E10T2C | C | White | 15.0 | 0.63 | 79.8 | 1.33 | 56.8 | 2.37 | 2364.0 | 39.40 |
80 psi (5.5 bar) max.
| Pump Prefix | Pump Tube | Roller Assembly | Gallons per Day | Gallons per Hour | Ounces per Hour | Ounces per Minute | Liters per Day | Liters per Hour | Milliliters per Hour | Milliliters per Minute |
|---|---|---|---|---|---|---|---|---|---|---|
| Approximate Output @ 60Hz | ||||||||||
| E10T1F | F | White | 0.6 | 0.02 | 3.0 | 0.05 | 2.2 | 0.09 | 90.0 | 1.50 |
| E10T2F | F | White | 1.3 | 0.05 | 6.6 | 0.11 | 4.8 | 0.20 | 198.0 | 3.30 |
| E20T4F | F | White | 3.4 | 0.14 | 18.0 | 0.30 | 13.1 | 0.54 | 544.8 | 9.08 |
| E20T4G | G | Black | 12.3 | 0.51 | 65.4 | 1.09 | 46.5 | 1.94 | 1937.4 | 32.29 |
| E20T4H | H | Black | 21.7 | 0.90 | 115.2 | 1.92 | 82.0 | 3.41 | 3416.4 | 56.94 |
Notice: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs
Technical Data
Specifications
24-hr programmable clock; 7 day,
24 event timer
+/- 5%
80 psi (5.5 bar), 25 psi (1.7 bar)
104°F (40°C)
24 VDC, brushed
9, 18 or 40
Continuous
100 Centipoise
120V 60Hz (0.25A), 230V 60Hz (0.17A), 230V 50Hz (10W), 24VDC (0.5A)
120V 60Hz; 230V 60Hz SJTOW; 230V 50Hz HO5RN-F; 24VDC Pigtail
120V 60Hz NEMA 5-15P; 230V 60Hz NEMA 6-15P; 230V 50Hz CEE7/7; 24VDC pigtail
6 ft (1.8m), 10 ft (3.05m) or 24VDC Pigtail 1 ft (30.5cm)
Indoor/Outdoor
Materials of Construction
Polycarbonate
Santoprene®* (FDA approved)
Polyethylene
Polyethylene (FDA approved)
PVC or Polypropylene (both NSF listed)
PVC or Polypropylene (both NSF listed)
PVC or Polypropylene (both NSF listed); ceramic weight
Stainless steel
* Santoprene is a registered trademark of Celanese International Corporation.
Pump Dimensions
Agency Listings
Box Dimensions
8 x 8 x 10 in. (21 x 21 x 25 cm)
Shipping Weight
4 lbs (1.7 kg)
Parts
Gear Kit
(gears, spacer, screws & Aquashield)
Gear Case Front Cover
(includes pump head cover)
EC330
Cover Screw B
Key Features
-
7 day / 24 hour timer
-
24 independent events
-
Enclosed housing
-
Tube replacement without tools
Item Numbers
