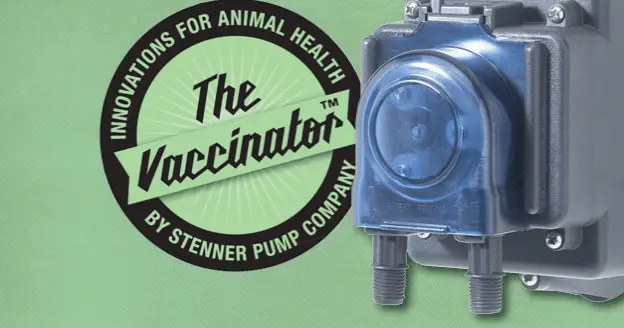

Econ Vaccinator™
Injects 1 gallon over 6 hours
Econ Vaccinator™ Series
Specifically designed to deliver 1 gallon over 6 hours, the Econ VaccinatorTM delivers a liquid oral vaccine directly into the water line. Unlike proportioners which require a water bypass which can restrict water flow. The direct injection provides accurate dosages to the entire herd and eliminates the need to pre-measure stock solutions resulting in reduced labor costs. The built-in timer automatically turns the pump off.
The peristaltic design is self-priming and can inject off gassing solutions without vapor lock or loss of prime. A foot valve is not required to prime, and the 3-point roller assembly assists with anti-siphoning. The output reproducibility provides reliable, accurate injection.

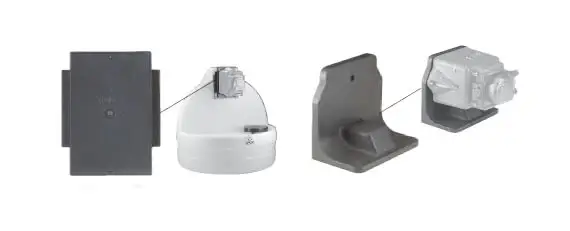

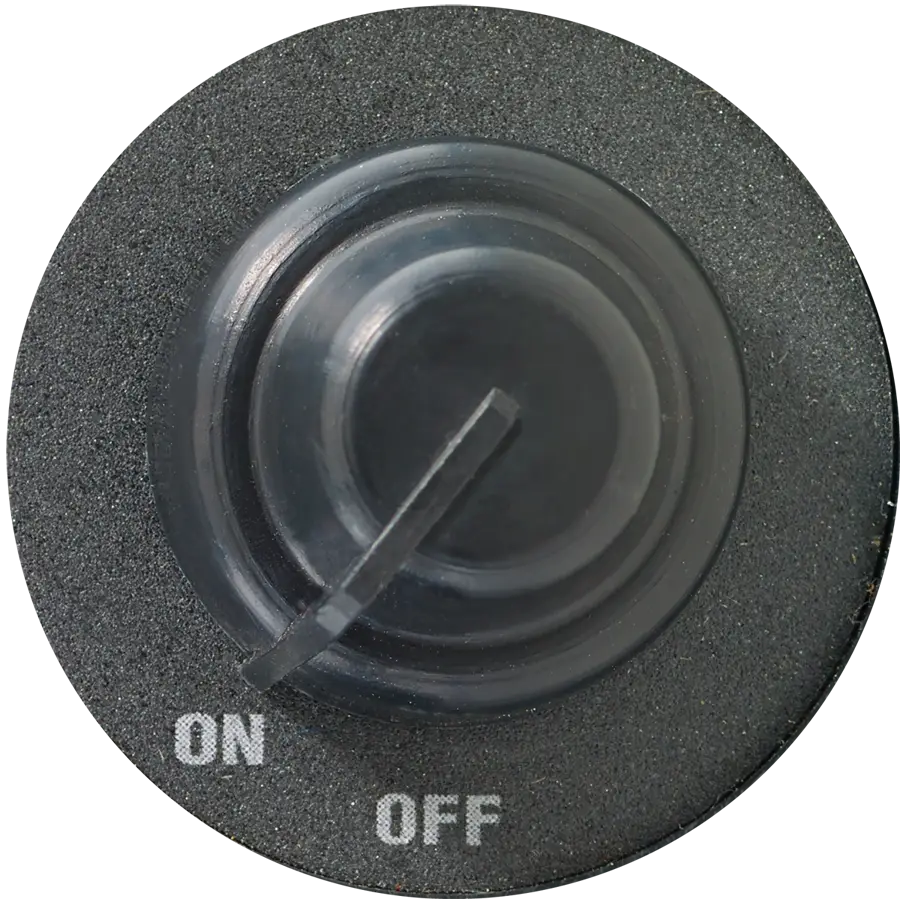

The patented quick release pump head offers simple tube replacement without tools. The pump has an on/off potentiometer with an enclosed housing for indoor and outdoor use. Optional mounting accessories are available.
Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or Contact Us.
Econ Pump General Installation Video
Econ Pump Tube Replacement Video
Flow Rate Outputs
80 psi (5.5 bar) maximum
| Item number | Voltage | Pump Tube | Roller Assembly | Ounces per Minute | Milliliters per Minute |
|---|---|---|---|---|---|
| E10SHGA1S | 120V 60Hz | G | Black | 0.36 | 13.9 |
| E10SHGC9S | 230V 50Hz | G | Black | 0.36 | 13.9 |
Notice: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs
Technical Data
Specifications
Factory programmed with 375 minute run cycle
+/- 2%
80 psi (5.5 bar)
104°F (40°C)
25 ft (7.6 m) vertical lift, based on water
24 VDC, brushless
17
Continuous
50 centipoise
120V 60Hz (0.25A), 230V 50Hz 1PH (0.3)
120V 60Hz, 230V 50Hz: SJTOW, 24VDC pigtail
120V 60Hz; 230V 50Hz H05RN-F
6 ft (1.8 m)
Indoor / Outdoor
Materials of Construction
Polycarbonate
Santoprene®* (FDA approved)
Polyethylene
Polyethylene (FDA approved)
PVC or Polypropylene (both NSF listed)
PVC or Polypropylene (both NSF listed)
Stainless steel
Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or Contact Us.
* Santoprene® is a registered trademark of Celanese International Corporation.

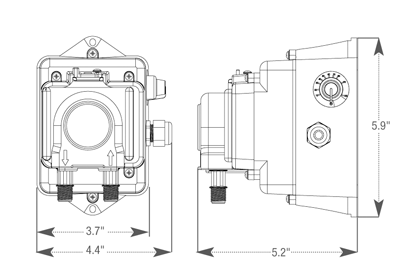

Pump Dimensions
Agency Listings
Box Dimensions
8 x 8 x 10 in. (21 x 21 x 25 cm)
Shipping Weight
4 lbs (1.6 kg)

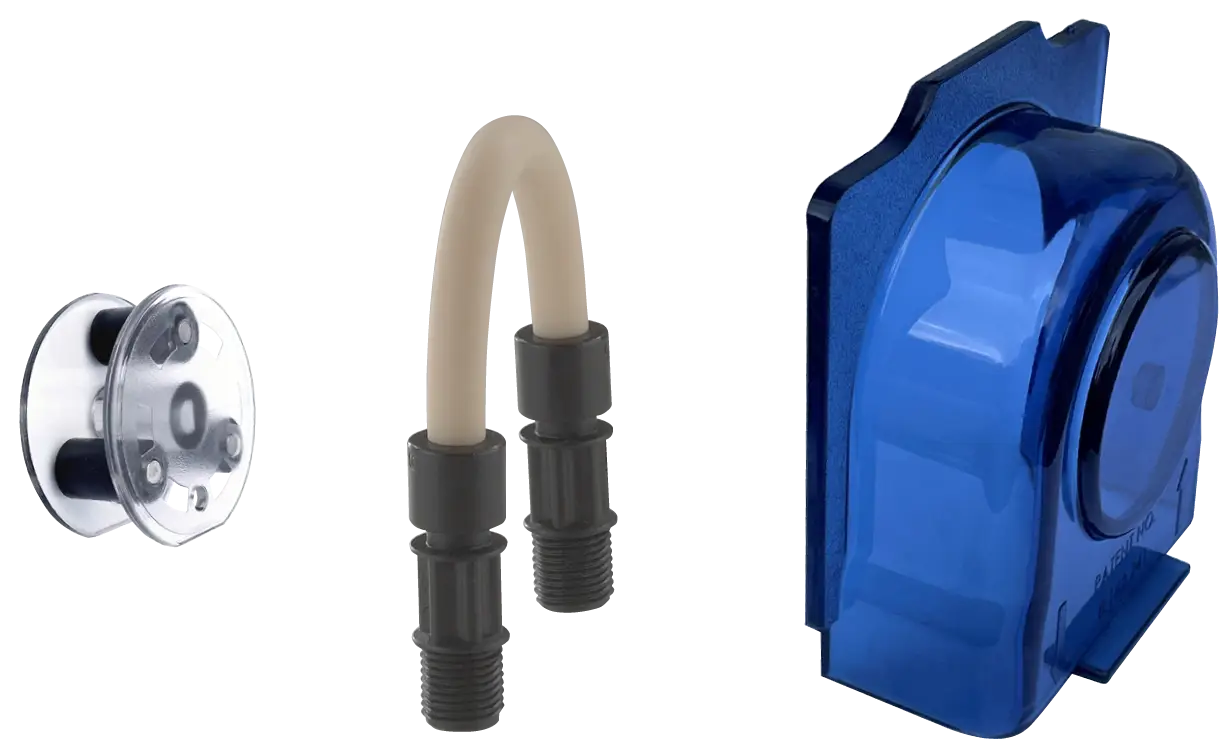

Parts

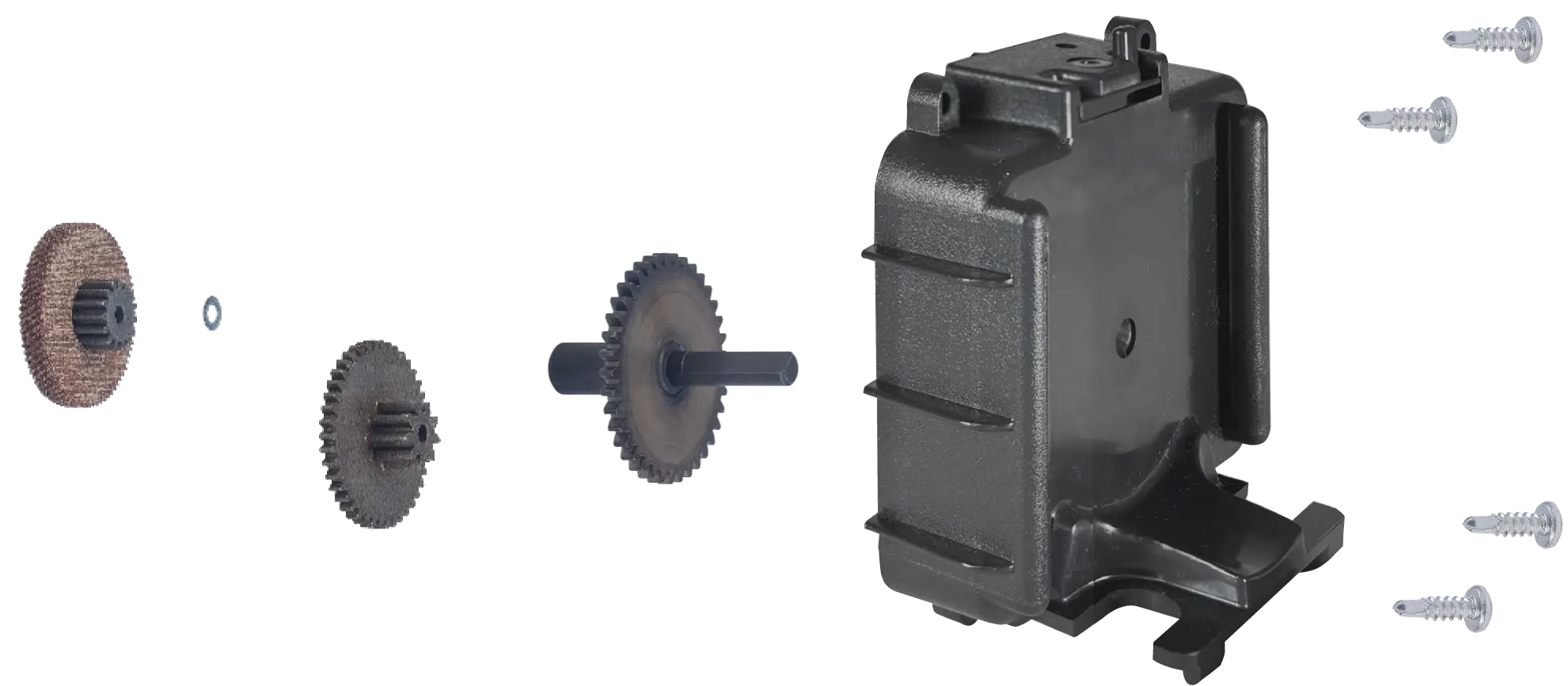

Gear Kit
(gears, spacer, screws & Aquashield)

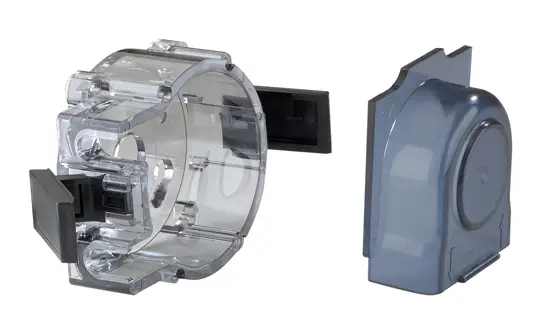

Gear Case Front Cover
(includes pump head cover)
EC330
Cover Screw B
Key Features
-
Injects 1 gallon consistently over 6 hours
-
Built-in time automatically turns off pump
-
Enclosed housing
-
Injects directly into water line
-
Tube replacement without tools
