Pumps | Classic Series

Single Head Fixed

Electromechanical peristaltic metering pumps

For over 69 years, the versatile Classic Series remains a popular choice for installers. The pump is easy to install, service or convert to another model without purchasing another pump. Injection can be directly into the water line and can also be activated by a pressure switch or controller.

Explore Models in the Classic Series

Single Head Adjustable

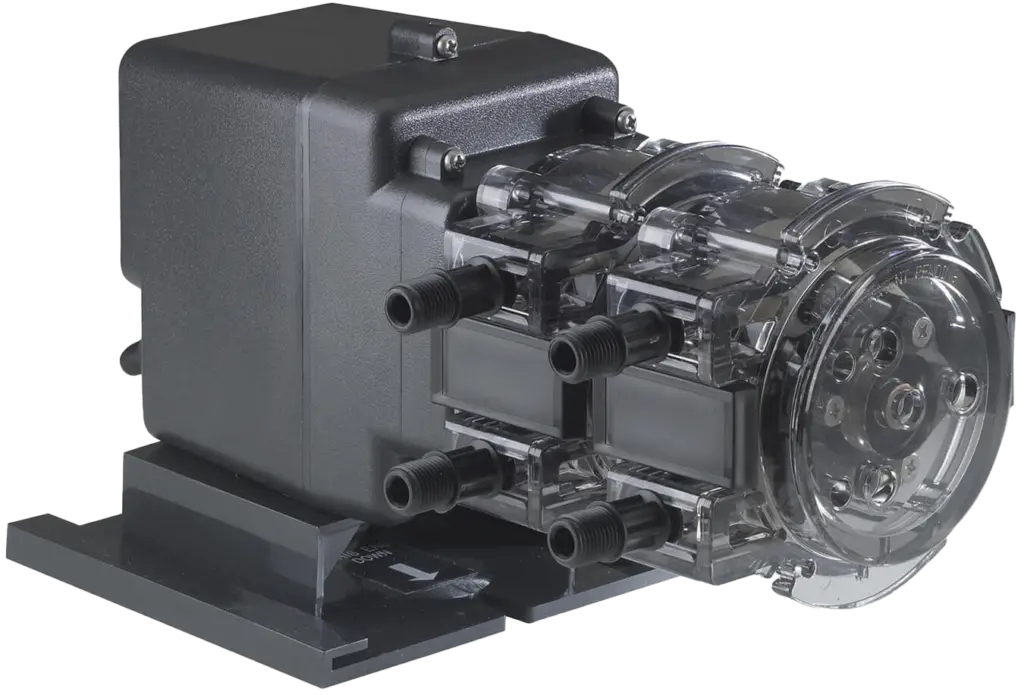

Double Head Adjustable

Single Head Fixed

Double Head Fixed

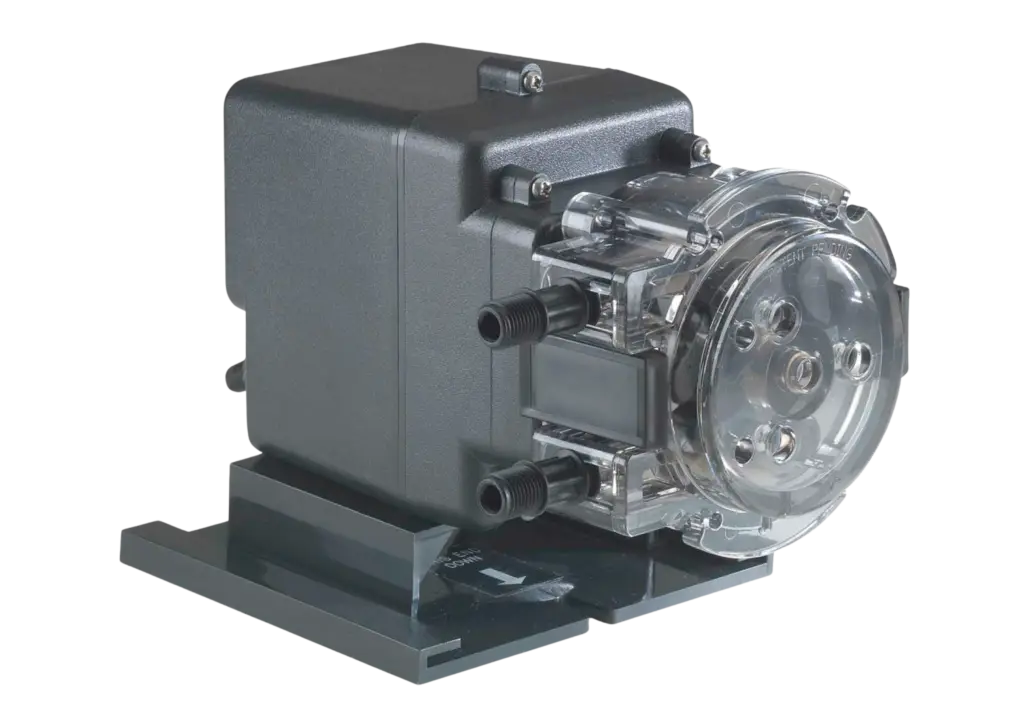

The Single Head Fixed Output pump is one of the varieties in the Classic line.

The fixed output pump is the same as the adjustable pump without the adjustability. The 45 models run at 26 RPM and the 85 models run at 44 RPM. The output is fixed and is controlled by the rpm of the motor gears and pump tube size. The motor output shaft rotates at a fixed rpm which drives the roller assembly within the pump head. The fixed output pump is compatible with controllers.

The pump is also a component of Stenner’s pre-assembled panel system the Proportional Injection System. The Proportional Injection System doses solution proportional to a water system’s flow rate based on the water volume. A water meter sends a signal to Stenner’s PCM which actuates the fixed output pump. The system is suited for constant pressure (variable speed) well pumps, poultry and livestock houses, irrigation and systems with demand based backup wells and any application with varying flow rates. If a pre-assembled system isn’t your preference, the pump, PCM and water meter are also available separately.

Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or contact us.

Flow Rate Outputs

Technical Data

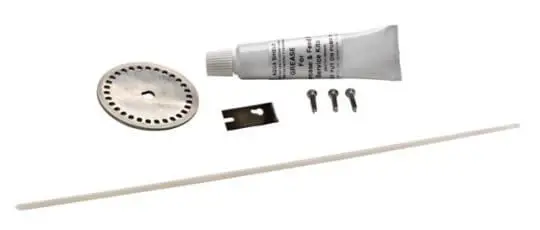

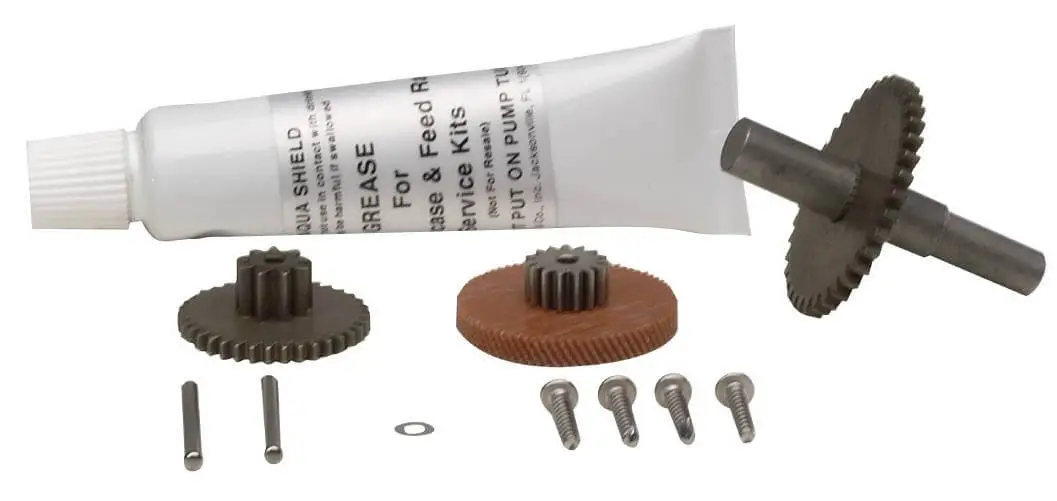

Parts

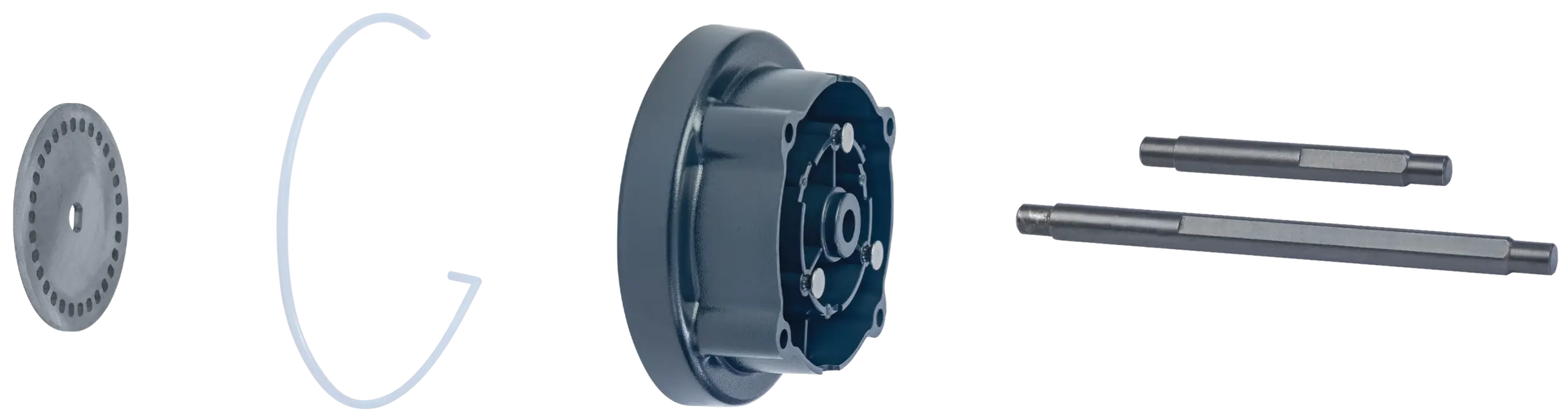

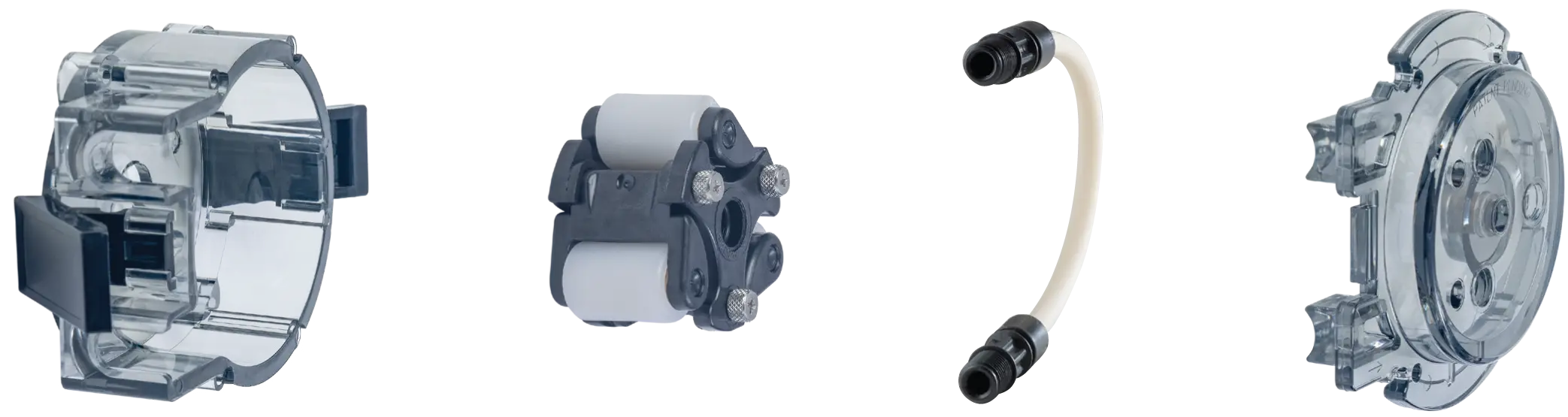

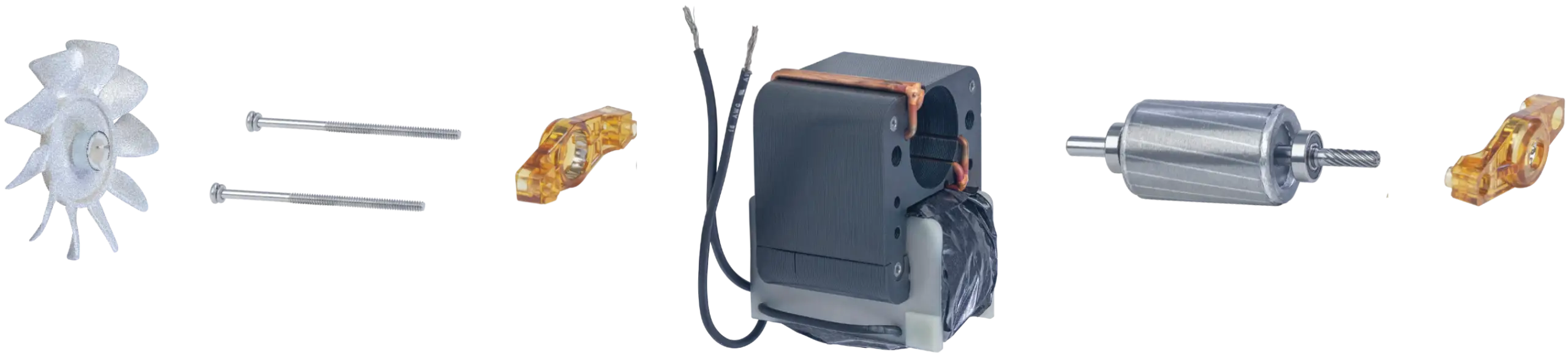

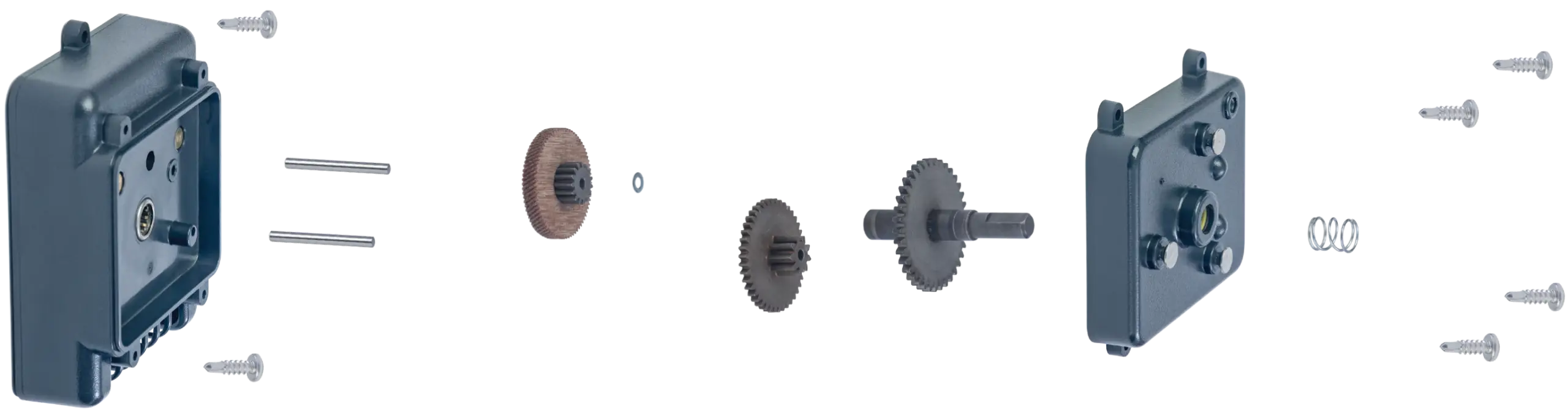

Exploded View

Flow Rate Outputs

25 psi (1.7 bar) max.

Pump Prefix	Model	Pump Tube	Gallons per Day	Gallons per Hour	Ounces per Minute	Liters Per Day	Liters per Hour	Milliliters per Minute	Liters per Day	Liters per Hour	Milliliters per Minute
45MFL1	45MP1	1	3.0	0.13	0.27	11.4	0.48	7.92	9.1	0.38	6.32
45MFL2	45MP2	2	10.0	0.42	0.89	37.9	1.58	26.32	30.3	1.26	21.04
45MFL3	45MP4	3	22.0	0.92	1.96	83.3	3.47	57.85	66.6	2.78	46.25
45MFL4	45MP4	4	35.0	1.46	3.11	132.5	5.52	92.01	106.0	4.42	73.61
45MFL5	45MP5	5	50.0	2.08	4.44	189.3	7.89	131.43	151.4	6.31	105.14
85MFL1	85MP1	1	5.0	0.21	0.44	18.9	0.79	13.13	15.1	0.63	10.49
85MFL2	85MP2	2	17.0	0.71	1.51	64.4	2.68	44.65	51.5	2.15	35.76
85MFL3	85MP3	3	40.0	1.67	3.55	151.4	6.31	105.14	121.1	5.05	84.10
85MFL4	85MP4	4	60.0	2.50	5.33	227.1	9.46	157.71	181.7	7.57	126.18
85MFL5	85MP5	5	85.0	3.54	7.55	321.8	13.40	223.40	257.4	10.73	178.75
			Approximate Output @ 60Hz						Approximate Output @ 50Hz

100 psi (6.9 bar) max.

Pump Prefix	Model	Pump Tube	Gallons per Day	Gallons per Hour	Ounces per Minute	Liters per Day	Liters per Hour	Milliliters per Minute	Liters per Day	Liters per Hour	Milliliters per Minute
45MFH1	45MPHP2	1	3.0	0.13	0.27	11.4	0.48	7.92	9.1	0.38	6.32
45MFH2	45MPHP10	2	10.0	0.42	0.89	37.9	1.58	26.32	30.3	1.26	21.04
45MFH7	45MPHP22	7	22.0	0.92	1.96	83.3	3.47	57.85	66.6	2.78	46.25
85MFH1	85MPHP5	1	5.0	0.21	0.44	18.9	0.79	13.13	15.1	0.63	10.49
85MFH2	85MPHP17	2	17.0	0.71	1.51	64.4	2.68	44.65	51.5	2.15	35.76
85MFH7	85MPHP40	7	40.0	1.67	3.55	151.4	6.31	105.14	121.1	5.05	84.10
			Approximate Output @ 60Hz						Approximate Output @ 50Hz

Notice: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs

Technical Data

Specifications

Reproducibility

+/- 2%

Maximum Working Pressure

25 psi (1.7 bar), 100 psi (6.9 bar)

Maximum Operating Temperature

125°F (52°C)

Maximum Suction Lift

25 ft (7.6 m) vertical lift, based on water

Motor Type

1/30 HP, shaded pole, class B

Duty Cycle

Continuous

Flow Rate Output Control

External dial ring

Maximum Viscosity

1500 Centipoise

Motor Voltage (Amp Draw)

120V 60Hz 1PH (1.7); 220V 60Hz 1PH (0.9);
230V 50Hz 1PH (0.9); 250V 50Hz 1PH (0.9)

Power Cord Type

120V 60Hz; 220V 60Hz SJTOW;
230V 50Hz, 250V 50Hz H05VV-F

Power Cord Plug End

120V 60Hz NEMA 5/15P; 220V 60Hz NEMA 6/15P; 230V 50Hz CEE7/7; 250V 50Hz CEE7/7

Power Cord Length

6 ft (1.8 m)

Classification

Indoor and suitable for outdoor when installed with a Stenner Rain Roof part number MP90000.

Materials of Construction

All Housings

Polycarbonate

Pump Tube

Santoprene®* (FDA approved) or Versilon®**

Check Valve Duckbill

Santoprene®* (FDA approved) or Pellethane®†

Pump Head Rollers

Polyethylene

Roller Bushings

Oil impregnated bronze

Suction/Discharge Line, and Ferrules

Polyethylene (FDA approved)

Tube & Injection Fittings

PVC or Polypropylene (both NSF listed)

Connecting Nuts

PVC or Polypropylene (both NSF listed)

3/8″ Adapter

PVC or Polypropylene (both NSF listed)

Suction Line Strainer and Cap

PVC or Polypropylene (both NSF listed); ceramic weight

All Fasteners

Stainless steel

Pump Head Latches

Polypropylene

Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or Contact Us.

* Santoprene® is a registered trademark of Celanese International Corporation. 
** Versilon® is a registered trademark of Saint-Gobain Performance Plastics. 
† Pellethane® is a registered trademark of Lubrizol Advanced Materials, Inc.
