Variable Speed | SVP Series

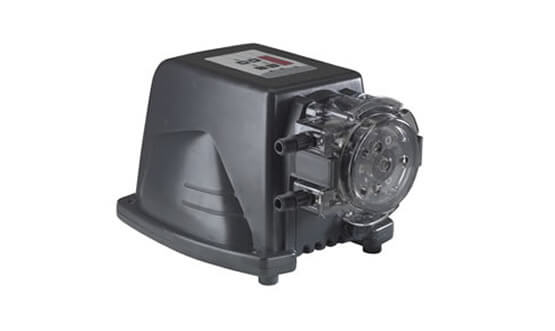

SVP Series Variable Speed Peristaltic Injection Pump

The SVP's output is digitally adjusted to increase or decrease the motor speed. The SVP4 accepts a 4-20mA signal to pace the pump, making it ideal for industrial, water and wastewater applications.



Output
0.3 to 85.0 gpd up to 25 psi maximum
0.3 to 40.0 gpd up to 100 psi maximum

Need Answers?

Item Number
Inquiry
Downloads

The SVP Series is a variable speed pump with manual or automatic control.

The SVP Series variable speed peristaltic injection pump is adjustable, has a DC motor and a detachable pump head. It features a rugged polycarbonate housing, heavy-duty gear motor and LED display with a four button control pad for easy operation.

The SVP is categorized into two sub-series, SVP1 and SVP4.  The SVP1 is manually adjusted using the keypad. The SVP4 is designed to respond directly to a 4-20mA input signal from water treatment controls including pH and ORP monitors to maintain proper water chemistry and treatment of effluent discharge water. The SVP4 is equipped with an external port to accept the signal or it can override the 4-20 mode to be manually adjusted with the arrows on the keypad.

The SVP4’s ability to accept a 4-20mA signal to pace the pump makes it well suited for the industrial user and municipal water treatment and wastewater treatment plants. Municipalities that supply potable water to residential and commercial sites require treatment of the well or surface water source they use. The SVP can inject sodium hypochlorite or other related disinfectants or meter solutions to oxidize problem water such as excessive levels of iron, manganese, and hydrogen sulfide which can cause staining and rotten egg odor.

Other applications include:

How It Works

The output is adjusted by a digital keypad to increase or decrease the motor speed. With a 20:1 turndown, the output control ranges from 5% to 100% in 1% increments for precise chemical injection and adjustment. The keypad has four buttons: prime, on/off and up and down arrows.

Unique Stenner Features

  • Interchangeable pump heads and tubes to convert one model to another without having to purchase a new pump.
  • Easy and fast tube replacement without tools with the QuickPro®  pump head.
  • The pump is built with two detachable components; the motor and pump head that can be separated without tools.

Sub-series

The same output range is available with the SVP1 (manual) or SVP4 (4-20mA). The output capability is different according to the pressure rating.

  • 0.3 to 40.0 gpd at 100 psi ( 1.1 to 151.4 lpd at 6.9 bar)
  • 0.3 to 85.0 gpd at 25 psi (1.1 to 321.8 lpd at 1.7 bar)

Click on output to find the specific output and pressure rating for your selected model.

Manual
Spec Sheet
Catalog
Chemical Resistance Guide

pdficon_smallTo view these documents, you need Adobe Acrobat Reader. You can download a free copy from the Adobe website.

SVP Manual Models –  Flow Rate Output Chart

ModelItem No.
Prefix
Pump
Tube #
25 psi (1.7 bar) maximum
SVP1L1SVP1L1#1
SVP1L2SVP1L2#2
SVP1L3SVP1L3#3
SVP1L4SVP1L4#4
SVP1L5SVP1L5#5
100 psi (6.9 bar) maximum
SVP1H1SVP1H1#1
SVP1H2SVP1H2#2
SVP1H7SVP1H7#7
Gallons
per Day
Gallons
 per Hour
Ounces
per Minute
Liters
per Day
Liters
 per Hour
Milliliters
per Minute
Approximate Output @ 50/60Hz
0.3 to 5.00.01 to 0.210.03 to 0.441.1 to 18.90.05 to 0.790.76 to 13.13
0.8 to 17.00.03 to 0.710.07 to 1.513.0 to 64.40.13 to 2.682.08 to 44.65
2.0 to 40.00.08 to 1.670.18 to 3.557.6 to 151.40.32 to 6.315.27 to 105.14
3.0 to 60.00.13 to 2.500.27 to 5.3311.4 to 227.10.48 to 9.467.92 to 157.71
4.3 to 85.00.18 to 3.540.38 to 7.5516.3 to 321.80.68 to 13.4011.32 to 223.40
Approximate Output @ 50/60Hz
0.3 to 5.00.01 to 0.210.03 to 0.441.1 to 18.90.05 to 0.790.76 to 13.13
0.8 to 17.00.03 to 0.710.07 to 1.513.0 to 64.40.13 to 2.682.08 to 44.65
2.0 to 40.00.08 to 1.670.18 to 3.557.6 to 151.40.32 to 6.315.27 to 105.14

SVP 4-20mA Input* Models – Flow Rate Output Chart

ModelItem No.
Prefix
Pump
Tube #
25 psi (1.7 bar) maximum
SVP4L1SVP4L1#1
SVP4L2SVP4L2#2
SVP4L3SVP4L3#3
SVP4L4SVP4L4#4
SVP4L5SVP4L5#5
100 psi (6.9 bar) maximum
SVP4H1SVP4H1#1
SVP4H2SVP4H2#2
SVP4H7SVP4H7#7
Gallons
per Day
Gallons
 per Hour
Ounces
per Minute
Liters
per Day
Liters
 per Hour
Milliliters
per Minute
Approximate Output @ 50/60Hz
0.3 to 5.00.01 to 0.210.03 to 0.441.1 to 18.90.05 to 0.790.76 to 13.13
0.8 to 17.00.03 to 0.710.07 to 1.513.0 to 64.40.13 to 2.682.08 to 44.65
2.0 to 40.00.08 to 1.670.18 to 3.557.6 to 151.40.32 to 6.315.27 to 105.14
3.0 to 60.00.13 to 2.500.27 to 5.3311.4 to 227.10.48 to 9.467.92 to 157.71
4.3 to 85.00.18 to 3.540.38 to 7.5516.3 to 321.80.68 to 13.4011.32 to 223.40
Approximate Output @ 50/60Hz
0.3 to 5.00.01 to 0.210.03 to 0.441.1 to 18.90.05 to 0.790.76 to 13.13
0.8 to 17.00.03 to 0.710.07 to 1.513.0 to 64.40.13 to 2.682.08 to 44.65
2.0 to 40.00.08 to 1.670.18 to 3.557.6 to 151.40.32 to 6.315.27 to 105.14

* Input Signal Voltage/Resistance Max. 48 VDC/128 ohm.

NOTE: Injection check valve included with pumps rated 100 psi (6.9 bar) maximum.

exclamationNOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
Specifications
Maximum Operating Temperature125°F (52°C)
Maximum Suction Lift25 ft (7.6 m) vertical lift, based on water
Motor Type12VDC gear motor
Duty CycleContinuous
Motor Voltage (Amp Draw)120V 50/60Hz 1PH (1.5)
220V 50/60Hz 1PH (1.5)
12VDC (4.2)
230V 50/60Hz 1PH (1.5) INTERNATIONAL
250V 50/60Hz 1PH (1.5) INTERNATIONAL
Power Cord Type120V, 220V, 230V, 250V: SJTOW
12VDC: VW-1
Power Cord Plug End120V 60Hz NEMA 5/15
220V 60Hz NEMA 6/15
230V 50Hz CEE 7/VII
250V 50Hz CEE 7/VII
12VDC Pigtail connection
Materials of Construction
All HousingsPolycarbonate
Pump Tube & Check Valve DuckbillSantoprene®* FDA approved, Versilon®**
CV Duckbill with
Versilon®** Tube
Pellethane®
Pump Head RollersPolyethylene
Roller BushingsOil impregnated bronze
Suction/Discharge Tubing
and Ferrules
Polyethylene, FDA approved
Tube and Injection FittingsPVC or Polypropylene, NSF listed
Connecting Nuts PVC, NSF listed
3/8" AdapterPVC or Polypropylene,  NSF listed
Suction Line Strainer and CapPVC or Polypropylene, NSF listed, with Ceramic Weight
All FastenersStainless steel
Pump Head LatchesPolypropylene

Agency Listings

Agency Listings
Listings vary by model.

*    Santoprene® is a registered trademark of Exxon Mobil Corporation.
**  Versilon® is a registered trademark of Saint-Gobain Performance Plastics.
†   Pellathane® is a registered trademark of Lubrizol Advanced Materials, Inc.
†† 12VDC pumps do not carry any agency listings.

Pump Dimensions

SVP Series Pump Dimensions

Shipping Weight: 10 lbs (4.5 kg)

Box Dimensions: 14 x 9 x 10 in. (36 x 23 x 24 cm)
