20:1 Turndown

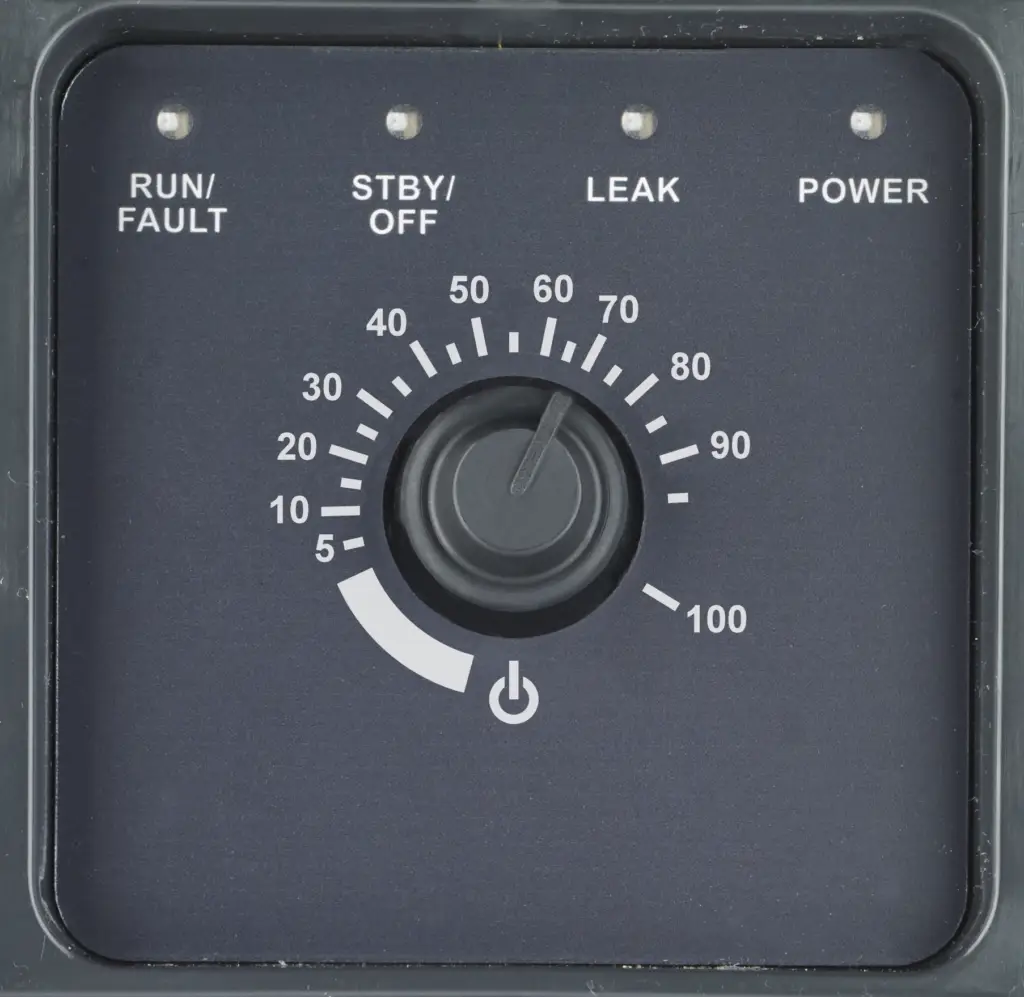

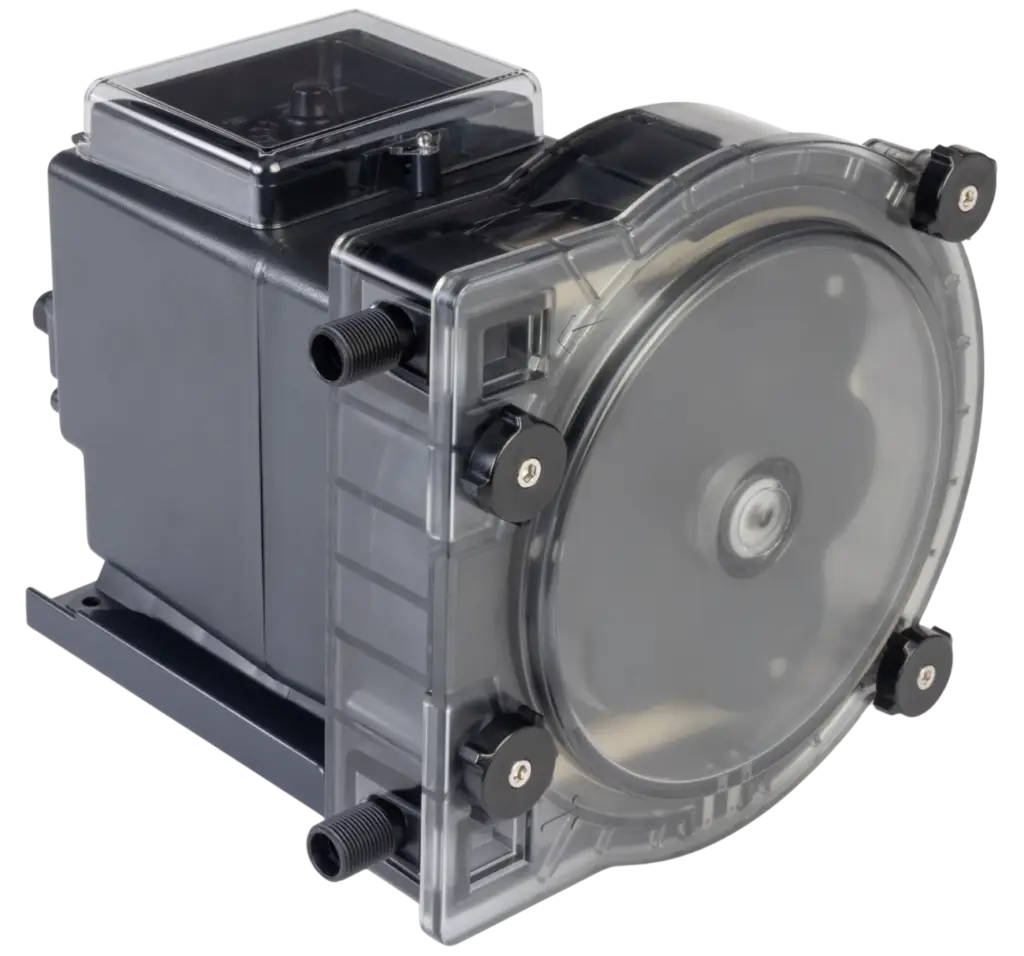

The S Variable Series are peristaltic pumps with practical functions such as backup pump capability, leak detection, and remote operation for industrial, water, wastewater, and commercial swimming pool applications. The pumps have 20:1 turndown and run at the speed set with the adjustable potentiometer when power is applied or the standby input is removed. The Series has LED pump status indicators and three output relays for indication from the pump to a separate device, like a process control device.
The pumps have a durable totally enclosed housing with NEMA 4X rating. The brushless DC motor is equipped with ball bearing support and the switch power mode offers energy efficiency. The splined shaft in the pump head and roller assembly allow smooth installation and replacement.
The identifying item number prefix begins with S3V, S4V, or S5V.
Key Features
Leak Detect Jumper
The pump includes a factory-installed Leak Detect Jumper to stop the pump if a leak is detected. The jumper may be removed to allow the pump to continue to run when a leak is detected.
Three Dedicated Output Relays
- Leak Detect: Sends relay to indicate a leak is detected.
- Run: Sends relay to indicate pump is operating.
- Transfer: Sends relay from the primary pump to transfer operation to a back-up pump, if a leak is detected, or if there is a loss of power or if a drive fault occurs.
Standby Input
The Standby Input can receive a dry contact signal to remotely stop or start the pump. The standby input is also utilized with the transfer relay to set the primary pump to transfer operation to a back-up pump.
Stenner Peristaltic Pump Advantages
- Self-priming against max. working pressure; foot valve not required
- Solutions do not contact moving parts
- Pump head requires no valves, allows for easy maintenance
- Does not lose prime or vapor lock
- Pumps off-gassing solutions and can run dry.
- Output volume is not affected by back pressure.
- Simple tube replacement
Flow Rate Outputs
| Pump Prefix |
Pump Tube | Turndown Ratio |
Gallons per Day |
Gallons per Hour |
Ounces per Hour |
Ounces per Minute |
Liters per Day |
Liters per Hour |
Milliliters per Hour |
Milliliters per Minute |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 psi (1.7 bar) max. | Approximate Output @ 50/60Hz | |||||||||
| S3V03 | 3 | 20:1 | 2.0-40.0 | 0.8-1.67 | 10.7-213.0 | 0.18-3.56 | 7.6-151.0 | 0.32-6.31 | 315.5-6309.0 | 5.3-05.0 |
| S3V04 | 4 | 20:1 | 3.0-60.0 | 0.13-2.50 | 16.0-320.0 | 0.27-5.33 | 11.4-227.0 | 0.47-9.46 | 473.2-9464.0 | 7.9-158.0 |
| S3V05 | 5 | 20:1 | 4.3-85.0 | 0.18-3.54 | 22.7-453.0 | 0.38-7.56 | 16.1-322.0 | 0.67-13.41 | 670.3-13407.0 | 11.2-223.0 |
| S4V5X |
5X | 20:1 | 7.5-150.0 | 0.31-6.25 | 40.0-800.0 | 0.67-13.33 | 28.4-568.0 | 1.18-23.66 | 1182.9-23659.0 | 19.7-394.0 |
| S5V5G | 5G | 20:1 | 15.8-315.0 | 0.66-13.13 | 84.0-1680.0 | 1.40-28.0 | 59.6-1192.0 | 2.48-49.68 | 2484.2-49684.0 | 41.4-828.0 |
| 100 psi (6.9 bar) max. | Approximate Output @ 50/60Hz | |||||||||
| S3V01 | 1 | 20:1 | 0.3-5.0 | 0.01- .21 | 1.3-27.0 | 0.02-0.44 | 1.0-19.0 | 0.04-0.79 | 39.4-789.0 | 0.7-13.0 |
| S3V02 | 2 | 20:1 | 0.8-17.0 | 0.03-0.71 | 4.5-91.0 | 0.07-1.51 | 3.2-64.0 | 0.13-2.68 | 134.1-2681.0 | 2.2-45.0 |
| S3V07 | 7 | 20:1 | 2.0-40.0 | 0.08-1.67 | 10.7-213.0 | 0.18-3.56 | 7.6-151.0 | 0.32-6.31 | 315.5-6309.0 | 5.3-105.0 |
| S4V7X | 7X | 20:1 | 3.0-60.0 | 0.13-2.50 | 16.0-320.0 | 0.27-5.33 | 11.4-227.0 | 0.47-9.46 | 473.2-9464.0 | 7.9-158.0 |
| S5V7G | 7G | 20:1 | 6.3-125.0 | 0.26-5.21 | 33.4-667.0 | 0.56-11.11 | 23.7-473.0 | 0.99-19.72 | 985.8-19716.0 | 16.5-329.5 |
Technical Data
| Specifications | |
| Flow Rate Output Control | Potentiometer |
| Reproducibility | +/- 2% |
| Maximum Working Pressure | 25 psi (1.7 bar), 100 psi (6.9 bar) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Suction Lift | 25 ft (7.6 m) vertical lift, based on water |
| Motor Type | Brushless DC motor |
| Shaft RPM (average maximum) | 45 |
| Duty Cycle | Continuous |
| Maximum Viscosity | 1500 centipoise |
| Motor Voltage (Amp Draw) | 120V 60Hz 1PH (0.6), 230V 60Hz 1PH (0.3), 230V 50Hz I PH (0.3) |
| Power Cord Type | 120V 60Hz SJTOWA, 230V 60Hz SJTOWA, 230V 50Hz H05RN-F |
| Power Cord Plug End | 120V 60Hz 5-15P, 230V 60Hz 6-15P, 230V 50Hz CEE7/7 |
| Cord Length | 6 ft (1.8 m) |
| Classification | Indoor/Outdoor |
| Materials of Construction | |
| All Housings | Polycarbonate |
| Pump Tube (S3V) | Santoprene®*(FDA approved), or Versilon®** |
| Pump Tube (S4V, S5V) | Santoprene®*(FDA approved) |
| Check Valve Duckbill (S3V) | Santoprene®* (FDA approved), or Pellethane®† |
| Ball Check Valve Components (S4V, S5V) | Ceramic ball (FDA approved); Tantalum spring; FKM seat & O-ring OR Ceramic ball (FDA approved); Stainless steel spring; EPDM seat; Santoprene®* O-ring |
| Pump Head Rollers (S3V, S4V) | Polyethylene |
| Pump Head Rollers (S5V) | Polycarbonate |
| Pump Head Guide Rollers (S4V, S5V) | Polyethylene |
| Roller Bushings (S3V, S4V) | Oil impregnated bronze |
| Roller Ball Bearings (S5V) | Stainless steel |
| Suction/Discharge Tubing and Ferrules |
Polyethylene (FDA approved) |
| Tube & Injection Fittings | PVC or Polypropylene (both NSF listed) |
| Connecting Nuts | PVC or Polypropylene (both NSF listed) |
| 3/8″ Adapter (S3V) | PVC or Polypropylene (both NSF listed) |
| Suction Line Strainer and Cap | PVC or Polypropylene (both NSF listed); ceramic weight |
| All Fasteners | Stainless steel |
| Pump Head Latches (S3V) | Polypropylene |
| Pump Head Thumbscrews (S4V, S5V) | Stainless steel and PVC |
| Pump Head Support & Transition Sleeve (S4V, S5V) | Santoprene®* |
| Tube Pull (S4V, S5V) | PVC |
| Leak Detect Components (S3V) | Hastelloy®†† |
| Leak Detect Components (S4V, S5V) | Hastelloy®†† and stainless steel |
* Santoprene® is a trademark of Celanese International Corporation.
** Versilon® is a registered trademark of Saint-Gobain Performance Plastics.
† Pellethane® is a registered trademark of Lubrizol Advanced Materials, Inc.
†† Hastelloy® is a registered trademark of Haynes International, Inc.
Agency Listings
Listings vary by model.
Pump Dimensions

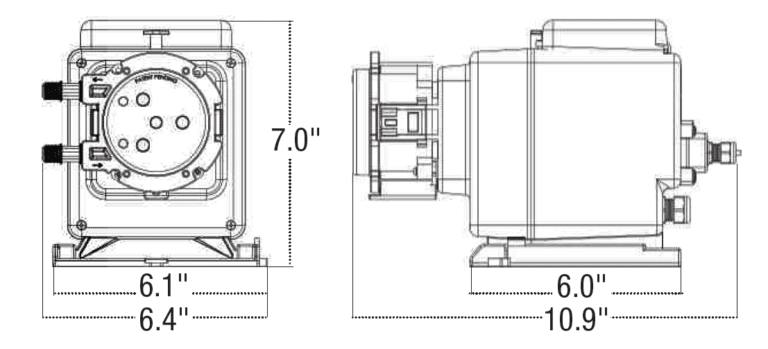

S3V Model
S4V Model
Box Dimensions

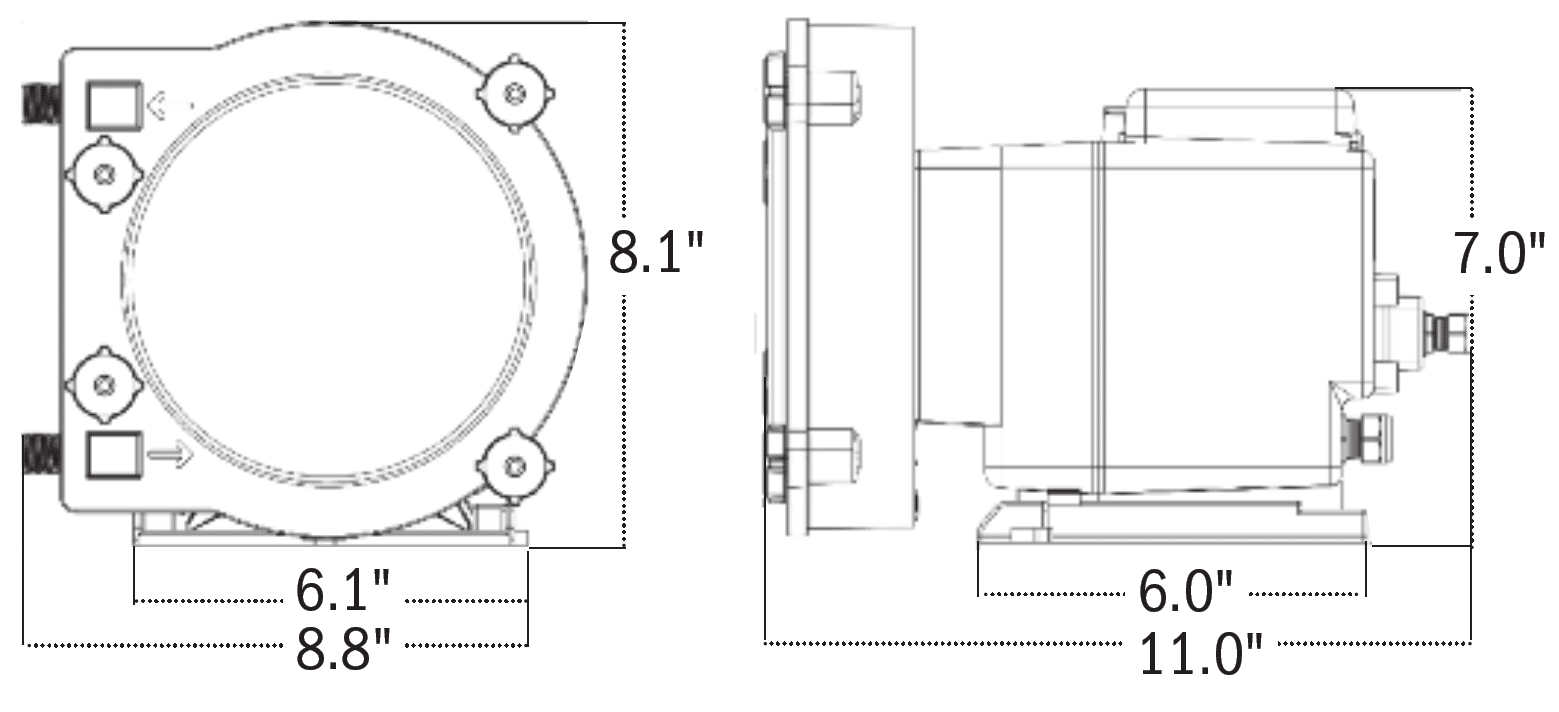

14 x 9 x 10 in. (35 x 23 x 24 cm)
Shipping Weight
9 lbs (3.7 kg)
S5V Model
Box Dimensions
16 x 13 x 14 in. (41 x 33 x 35 cm)
Shipping Weight
14 lbs (6.3 kg)
