Pump Head Parts
Part Number | UM | Description | Works With |
---|---|---|---|
QP400-1 QP400-2 |
EA 2-PK |
QP Tube Housing & Latches | 45, 85, 100, 170 |
QP401-2 | 2-PK | Plastic Latches | 45, 85, 100, 170, S30, S3V, S34, S3P |
QP500-1 QP500-4 |
EA 4-PK |
QP Roller Assembly | 45, 85, 100, 170 |
QP100-1 QP100-4 |
EA 4-PK |
QP Tube Housing Cover with Bushing | 45, 85, 100, 170 |
S3200-1 S3400-2 |
EA 2-PK |
S3QP Tube Housing & Latches | S30, S34, S3P, S3V |
S3500-1 S3500-4 |
EA 4-PK |
S3QP Roller Assembly | S30, S34, S3P, S3V |
S3600-1 S3600-4 |
EA 4-PK |
S3QP Tube Housing Cover | S30, S34, S3P, S3V |
S44B0-1 S44B0-2 |
EA 2-PK |
S4 Tube Housing | S40, S44, S4V, S4M with Thumbscrews |
S45B0-1 S45B0-4 |
EA 4-PK |
S4 Roller Assembly | S40, S44, S4V, S4M with Thumbscrews |
S46B0-1 S46B0-4 |
EA 4-PK |
S4 Tube Housing Cover | S40, S44, S4V, S4M with Thumbscrews |
S40B3-1 | EA | S4 Pump Head Support | S40, S44, S4V, S4M with Thumbscrews |
S4400-1 S4400-2 |
EA 2-PK |
S4QP Tube Housing & Latches | S40, S44, S4V, S4M with Metal Latches |
S4500-1 S4500-4 |
EA 4-PK |
S4QP Roller Assembly | S40, S44, S4V, S4M with Metal Latches |
S4600-1 S4600-4 |
EA 4-PK |
S4QP Tube Housing Cover | S40, S44, S4V, S4M with Metal Latches |
S5500-1 S5500-4 |
EA 4-PK |
S5 Roller Assembly | S50, S54, S5V |
S5600-1 S5600-4 |
EA 4-PK |
S5 Tube Housing Cover | S50, S54, S5V |
S5400-1 S5400-2 |
EA 2-PK |
S5 Tube Housing | S50, S54, S5V |
S5003-1 | EA | S5 Pump Head Support | S50, S54, S5V |
S5002-1
|
EA | S4 & S5 Transition Sleeve | S40, S44, S4V, S4M, S50, S54, S5V |
S5001-4
|
4-PK | S4 & S5 Thumbscrews | S40, S44, S4V, S4M, S50, S54, S5V |
S6063-4
|
4-PK | S4 & S5 Tube Pull | S40, S44, S4V, S4M, S50, S54, S5V |
Pump Head Service Kits
Part Number | UM | Description | Works With |
25 psi (1.7 bar) max. Includes roller assembly, tube, nuts, ferrules 1/4″, latches | |||
QP251K | KIT | #1 Santoprene®* QP Kit | 45, 85, 100, 170 |
QP252K | KIT | #2 Santoprene®* QP Kit | 45, 85, 100, 170 |
QP253K | KIT | #3 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3103K | KIT | #3 Santoprene®* S3QP Kit | S30, S34, S3V |
QP254K | KIT | #4 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3104K | KIT | #4 Santoprene®* S3QP Kit | S30, S34, S3V |
QP255K | KIT | #5 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3105K | KIT | #5 Santoprene®* S3QP Kit | S30, S34, S3V |
QP25T1K | KIT | #1 Versilon®* QP Kit | 45, 85, 100, 170 |
QP25T2K | KIT | #2 Versilon®* QP Kit | 45, 85, 100, 170 |
QP25T3K | KIT | #3 Versilon®* QP Kit | 45, 85, 100, 170 |
S3203K | KIT | #3 Versilon®* S3QP Kit | S30, S34, S3V |
QP25T4K | KIT | #4 Versilon®* QP Kit | 45, 85, 100, 170 |
S3204K | KIT | #4 Versilon®* S3QP Kit | S30, S34, S3V |
QP25T5K | KIT | #5 Versilon®* QP Kit | 45, 85, 100, 170 |
S3205K | KIT | #5 Versilon®* S3QP Kit | S30, S34, S3V |
EUROPE 25 psi (1.7 bar) max. Includes roller assembly, tube, nuts, ferrules 6 mm, latches | |||
QP171K | KIT | #1 Santoprene®* QP Kit | 45, 85, 100, 170 |
QP172K | KIT | #2 Santoprene®* QP Kit | 45, 85, 100, 170 |
QP173K | KIT | #3 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3113K | KIT | #3 Santoprene®* S3QP Kit | S30, S34, S3V |
QP174K | KIT | #4 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3114K | KIT | #4 Santoprene®*S3QP Kit | S30, S34, S3V |
QP175K | KIT | #5 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3115K | KIT | #5 Santoprene®* S3QP Kit | S30, S34, S3V |
QP17T1K | KIT | #1 Versilon®* QP Kit | 45, 85, 100, 170 |
QP17T2K | KIT | #2 Versilon®* QP Kit | 45, 85, 100, 170 |
QP17T3K | KIT | #3 Versilon®* QP Kit | 45, 85, 100, 170 |
S3213K | KIT | #3 Versilon®* S3QP Kit | S30, S34, S3V |
QP17T4K | KIT | #4 Versilon®* QP Kit | 45, 85, 100, 170 |
S3214K | KIT | #4 Versilon®* S3QP Kit | S30, S34, S3V |
QP17T5K | KIT | #5 Versilon®* QP Kit | 45, 85, 100, 170 |
S3215K | KIT | #5 Versilon®* S3QP Kit | S30, S34, S3V |
100 psi (6.9 bar) max. Includes roller assembly, tube, duckbill, nuts, ferrules 1/4″, latches | |||
QP101K | KIT | #1 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3101K | KIT | #1 Santoprene®* S3QP Kit | S30, S34, S3P, S3V |
QP102K | KIT | #2 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3102K | KIT | #2 Santoprene®* S3QP Kit | S30, S34, S3P, S3V |
S3106K | KIT | #6 Santoprene®* S3QP Kit | S3P |
QP107K | KIT | #7 Santoprene®* QP Kit | 45, 85 |
S3107K | KIT | #7 Santoprene®* S3QP Kit | S30, S34, S3V |
QP10T1K | KIT | #1 Versilon®* QP Kit | 45, 85, 100, 170 |
S3201K | KIT | #1 Versilon®* S3QP Kit | S30, S34, S3V |
QP10T2K | KIT | #2 Versilon®* QP Kit | 45, 85, 100, 170 |
S3202K | KIT | #2 Versilon®* S3QP Kit | S30, S34, S3V |
EUROPE 100 psi (6.9 bar) max. Includes roller assembly, tube, duckbill, ferrules 6 mm, latches | |||
QP691K | KIT | #1 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3111K | KIT | #1 Santoprene®* S3QP Kit | S30, S34, S3P, S3V |
QP692K | KIT | #2 Santoprene®* QP Kit | 45, 85, 100, 170 |
S3112K | KIT | #2 Santoprene®* S3QP Kit | S30, S34, S3P, S3V |
S3116K | KIT | #6 Santoprene®* S3QP Kit | S3P |
QP697K | KIT | #7 Santoprene®* QP Kit | 45, 85 |
S3117K | KIT | #7 Santoprene®* S3QP Kit | S30, S34, S3V |
QP69T1K | KIT | #1 Versilon®* QP Kit | 45, 85, 100, 170 |
S3211K | KIT | #1 Versilon®* S3QP Kit | S30, S34, S3V |
QP69T2K | KIT | #2 Versilon®* QP Kit | 45, 85, 100, 170 |
S3212K | KIT | #2 Versilon®* S3QP Kit | S30, S34, S3V |
25 psi (1.7 bar) max. Includes roller assembly, tube, 3/8″ nuts | |||
S41B5XK | KIT | #5X Santoprene®* S4 Kit | S40, S44, S4V with Thumbscrews |
S4105XK | KIT | #5X Santoprene®* S4QP Kit | S40, S44, S4V with Metal Latches |
S5105GK | KIT | #5G Santoprene®* S5 Kit | S50, S54, S5V |
60 psi (4.1 bar) max. Includes roller assembly, tube, 3/8″ nuts | |||
S4158XK | KIT | #8X Santoprene®* S4 Kit | S4M with Thumbscrews |
S4108XK | KIT | #8X Santoprene®* S4QP Kit | S4M with Metal Latches |
100 psi (6.9 bar) max. Includes roller assembly, tube, 3/8″ nuts | |||
S41B7XK | KIT | #7X Santoprene®* S4 Kit | S40, S44, S4V with Thumbscrews |
S4107XK | KIT | #7X Santoprene®* S4QP Kit | S40, S44, S4V with Metal Latches |
S5107GK | KIT | #7G Santoprene®* S5 Kit | S50, S54, S5V |
*Confirm material compatibility with the chemical resistance guide in the catalog.

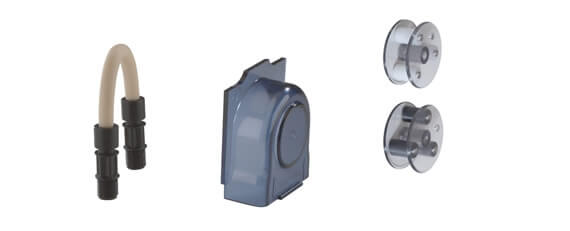

Econ Pump Head Parts
All Econ pumps work with a specific pump tube and roller assembly combination.
Part Number | UM | Description | Works With |
---|---|---|---|
EC355 | EA | Pump Head Cover | All Econ pumps |
EC350 | EA | Roller Assembly, white | Santoprene tube®* tube A, B, C, F, M |
EC351 | EA | Roller Assembly, black | Santoprene tube®* G, H, J, FKM* Tube C3 for E20T1C3 & E20T2C3 |
EC352 | EA | Roller Assembly, blue | Silicon* tube C4, FKM* Tube C3 for E10T01C3 & E20T01C3 |
