Pump Heads

Refer to the chart below to match the part with the pump

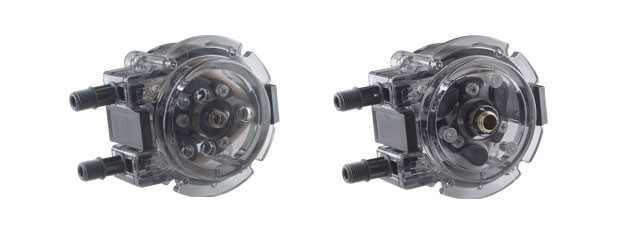

QuickPro® Pump Head

The patented QuickPro® pump head is identified by the collapsible roller assembly and latches securing the cover instead of screws. For quick service, replacing the pump head subassembly is a convenient option.

Part Number UM Description Works With
25 psi (1.7 bar) maximum  Includes pump tube, ferrules 1/4″
QP251-1
QP251-2
EA
2-PK
#1 Santoprene®* QP Pump Head Classic
QP252-1
QP252-2
EA
2-PK
#2 Santoprene®* QP Pump Head Classic
QP253-1
QP253-2
EA
2-PK
#3 Santoprene®* QP Pump Head Classic
S3103-1
S3103-2
EA
2-PK
#3 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP254-1
QP254-2
EA
2-PK
#4 Santoprene®* QP Pump Head Classic
S3104-1
S3104-2
EA
2-PK
#4 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP255-1
QP255-2
EA
2-PK
#5 Santoprene®* QP Pump Head Classic
S3105-1
S3105-2
EA
2-PK
#5 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP25T1-1 EA #1 Versilon®* QP Pump Head Classic
QP25T2-1 EA #2 Versilon®* QP Pump Head Classic
QP25T3-1 EA #3 Versilon®* QP Pump Head Classic
S3203-1 EA #3 Versilon®* S3QP Pump Head S pumps with S3 prefix
QP25T4-1 EA #4 Versilon®* QP Pump Head Classic
S3204-1 EA #4 Versilon®* S3QP Pump Head S pumps with S3 prefix
QP25T5-1 EA #5 Versilon®* QP Pump Head Classic
S3205-1 EA #5 Versilon®* S3QP Pump Head S pumps with S3 prefix
25 psi (1.7 bar) maximum  Includes pump tube
S4105X-1
S4105X-2
EA
2-PK
#5X Santoprene®* S4QP Pump Head S pumps with S4 prefix
EUROPE 25 psi (1.7 bar) maximum Includes pump tube, ferrules 6 mm
QP171-1
QP171-2
EA
2-PK
#1 Santoprene®*  QP Pump Head Classic
QP172-1
QP172-2
EA
2-PK
#2 Santoprene®* QP Pump Head Classic
QP173-1
QP173-2
EA
2-PK
#3 Santoprene®*  QP Pump Head Classic
S3153-1
S3153-2
EA
2-PK
#3 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP174-1
QP174-2
EA
2-PK
#4 Santoprene®*  QP Pump Head Classic
S3154-1
S3154-2
EA
2-PK
#4 Santoprene®*  S3QP Pump Head S pumps with S3 prefix
QP175-1
QP175-2
EA
2-PK
#5 Santoprene®*  QP Pump Head Classic
S3155-1
S3155-2
EA
2-PK
#5 Santoprene®*  S3QP Pump Head S pumps with S3 prefix
QP17T1-1 EA #1 Versilon®* QP Pump Head Classic
QP17T2-1 EA #2 Versilon®* QP Pump Head Classic
QP17T3-1 EA #3 Versilon®* QP Pump Head Classic
S3253-1 EA #3 Versilon®* Pump Head S pumps with S3 prefix
QP17T4-1 EA #4 Versilon®* Pump Head Classic
S3254-1 EA #4 Versilon®* S3QP Pump Head S pumps with S3 prefix
QP17T5-1 EA #5 Versilon®* QP Pump Head Classic
S3255-1 EA #5 Versilon®* S3QP Pump Head S pumps with S3 prefix



Part Number UM Description Works With
100 psi (6.9 bar) maximum  Includes pump tube, duckbill, ferrules 1/4″
QP101-1 EA #1 Santoprene®* QP Pump Head Classic
S3101-1
S3101-2
EA
2-PK
#1 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP102-1 EA #2 Santoprene®* QP Pump Head Classic
S3102-1
S3102-2
EA
2-PK
#2 Santoprene®* S3QP Pump Head S pumps with S3 prefix
S3106-1
S3106-2
EA
2-PK
#6 Santoprene®* S3QP Pump Head S10P
QP107-1 EA #7 Santoprene®* QP Pump Head Classic 45 or 85 models
S3107-1
S107-2
EA
2-PK
#7 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP10T1-1 EA #1 Versilon®* QP Pump Head Classic
S3201-1 EA #1 Versilon®* S3QP Pump Head S pumps with S3 prefix
QP10T2-1 EA #1 Versilon®* QP Pump Head Classic
S3202-1 EA #1 Versilon®* S3QP Pump Head S pumps with S3 prefix
100 psi (6.9 bar) maximum  Includes pump tube
S4107X-1
S4107X-2
EA
2-PK
#7X Santoprene®* S4QP Pump Head S pumps with S4 prefix
60 psi (4.1 bar) maximum  Includes pump tube
S4108X-1
S4108X-2
EA
2-PK
#8X Santoprene®* S4QP Pump Head S128
EUROPE 100 psi (6.9 bar) maximum  Includes pump tube, duckbill, ferrules 6 mm
QP691-1 EA #1 Santoprene®* QP Pump Head Classic
S3151-1
S3151-2
EA
2-PK
#1 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP692-1 EA #2 Santoprene®* QP Pump Head Classic
S3152-1
S3152-2
EA
2-PK
#2 Santoprene®* S3QP Pump Head S pumps with S3 prefix
S3156-1
S3156-2
EA
2-PK
#6 Santoprene®* S3QP Pump Head S10P
QP697-1 EA #7 Santoprene®* QP Pump Head Classic 45 or 85 models
S3157-1
S3157-2
EA
2-PK
#7 Santoprene®* S3QP Pump Head S pumps with S3 prefix
QP69T1-1 EA #1 Versilon®* QP Pump Head Classic
S3251-1 EA #1 Versilon®* S3QP Pump Head S pumps with S3 prefix
QP69T2-1 EA #2 Versilon®* QP Pump Head Classic
S3252-1 EA #1 Versilon®* S3QP Pump Head S pumps with S3 prefix

*Confirm material compatibility with the chemical resistance guide in the catalog.


Classic Series Double Head Pump – Innermost QuickPro® Pump Head

The innermost pump head is the pump head subassembly closest to the motor in the Classic Series Double Head Fixed or Double Head Adjustable Pump.



Part Number UM Description Works With
25 psi (1.7 bar) maximum  Includes pump tube, ferrules 1/4″
QPA251-1
QPA251-2
EA
2-PK
#1 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA252-1
QPA252-2
EA
2-PK
#2 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA253-1
QPA253-2
EA
2-PK
#3 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA254-1
QPA254-2
EA
2-PK
#4 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA255-1
QPA255-2
EA
2-PK
#5 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
EUROPE 25 psi (1.7 bar) maximum  Includes pump tube, ferrules 6 mm
QPA171-1
QPA171-2
EA
2-PK
#1 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA172-1
QPA172-2
EA
2-PK
#2 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA173-1
QPA173-2
EA
2-PK
#3 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA174-1
QPA174-2
EA
2-PK
#4 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA175-1
QPA175-2
EA
2-PK
#5 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models



Part Number UM Description Works With
100 psi (6.9 bar) maximum  Includes pump tube, duckbill, ferrules 1/4″
QPA101-1
QPA101-2
EA
2-PK
#1 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA102-1
QPA102-1
EA
2-PK
#2 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
EUROPE 100 psi (6.9 bar) maximum  Includes tube, duckbill, ferrules 6 mm
QPA691-1
QPA691-2
EA
2-PK
 #1 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models
QPA692-1
QPA692-2
EA
2-PK
#2 Santoprene®* QP Innermost
Pump Head
Classic 100 or 170 models

* Confirm material compatibility with the chemical resistance guide in the catalog .
