Stenner | Solution Tanks

Stenner Solution Tanks

Stenner solution tanks retrofit to any of the following Stenner peristaltic metering pumps: Classic Single Head Adjustable, Classic Single Head Fixed, M128, SVP and the Econ Pump Line.

Need Answers?

Item Number
Inquiry
Downloads

Additional parts are not needed when purchasing a tank for an existing Classic single head adjustable or single head fixed, SVP or M128 pump. If purchasing a tank for an existing Econ pump, a mounting kit is required. Click here for mounting kit options.

Shipping Weight and Box Dimensions

Tank SizeShipping WeightProduct DimensionBox Dimension
7.5-Gallon9 lbs (4.1 kg)20.5 OD x 19.6 in. (52.1 OD x 49.9 cm)23 x 23 x 21 in. (58.4 x 58.4 x 53.3 cm)
15-Gallon19 lbs (8.6 kg)20.5 OD x 25.3 in. (52.1 OD x 64.1 cm)23 x 23 x 27 in. (58.4 x 58.4 x 68.6 cm)
30-Gallon26 lbs (11.8 kg)20.5 OD x 37.5 in. (52.1 OD x 95.3 cm)23 x 23 x 38 in. (58.4 x 58.4 x 96.5 cm)
Materials of Construction
TankPolyethylene
Lid with child resistant lockPolypropylene
GrommetsViton
ScrewsStainless steel

Agency Listings

Agency Listings

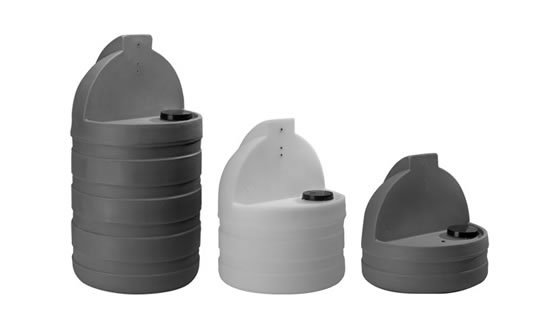

Stenner solution tanks are offered in three sizes and two colors

The polyethylene construction is both lightweight and rugged. The solution tanks have incremental level indicators and are equipped with a child resistant lid. The tank is designed to vertically mount the Stenner pump over the tank’s containment basin. The Mixer is designed to fit the Stenner tank or tank system and is utilized when injecting solutions that are difficult to keep in suspension.

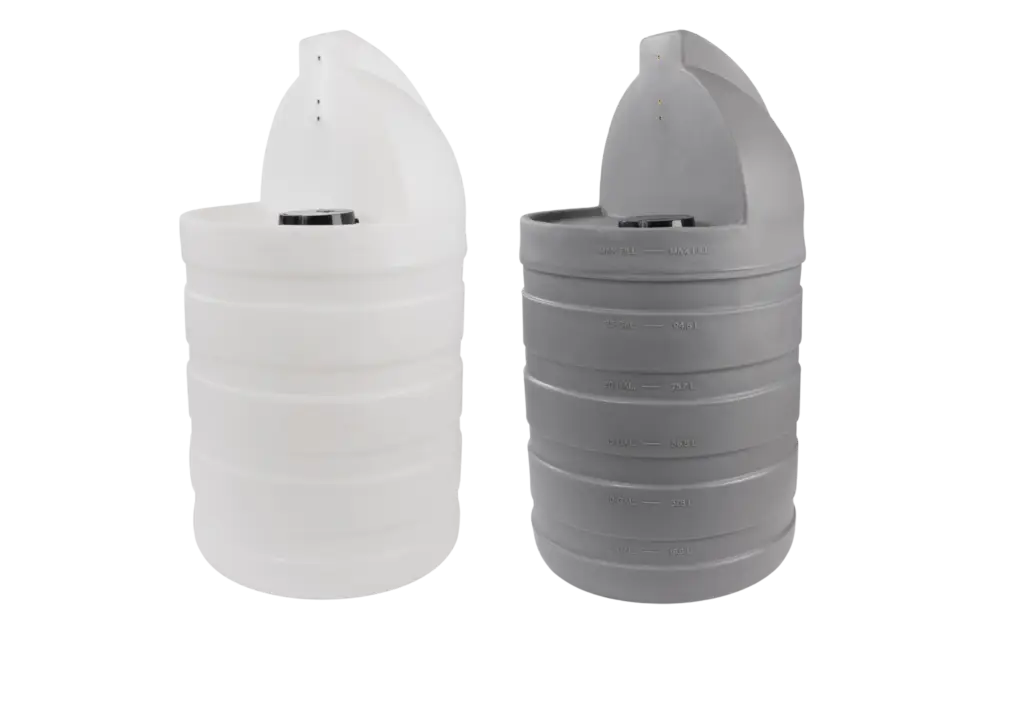

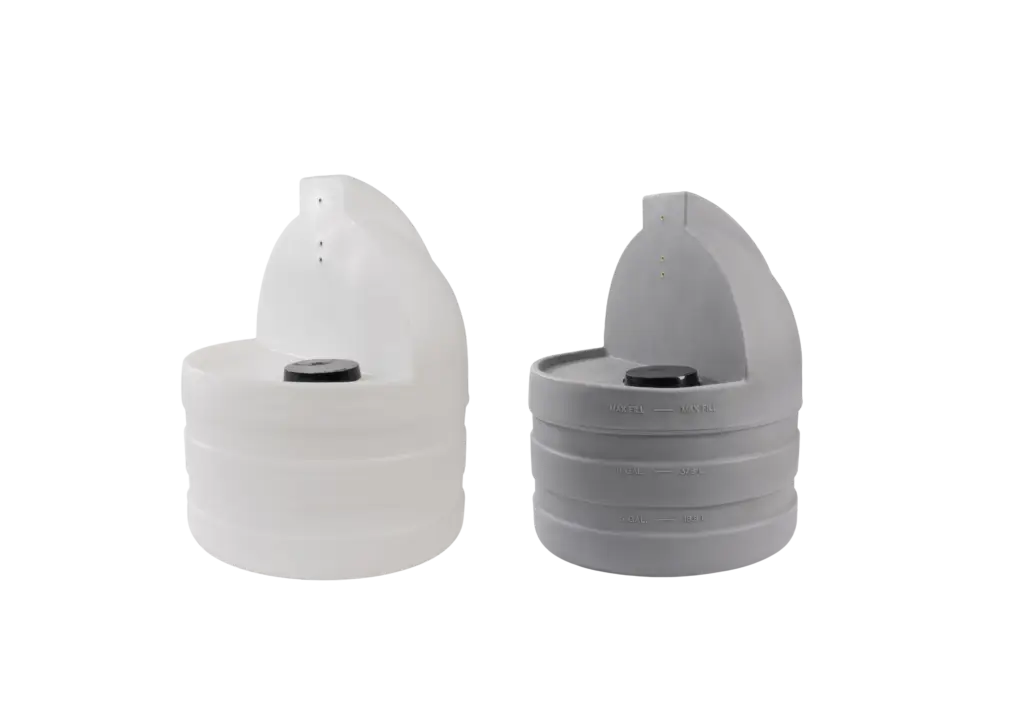

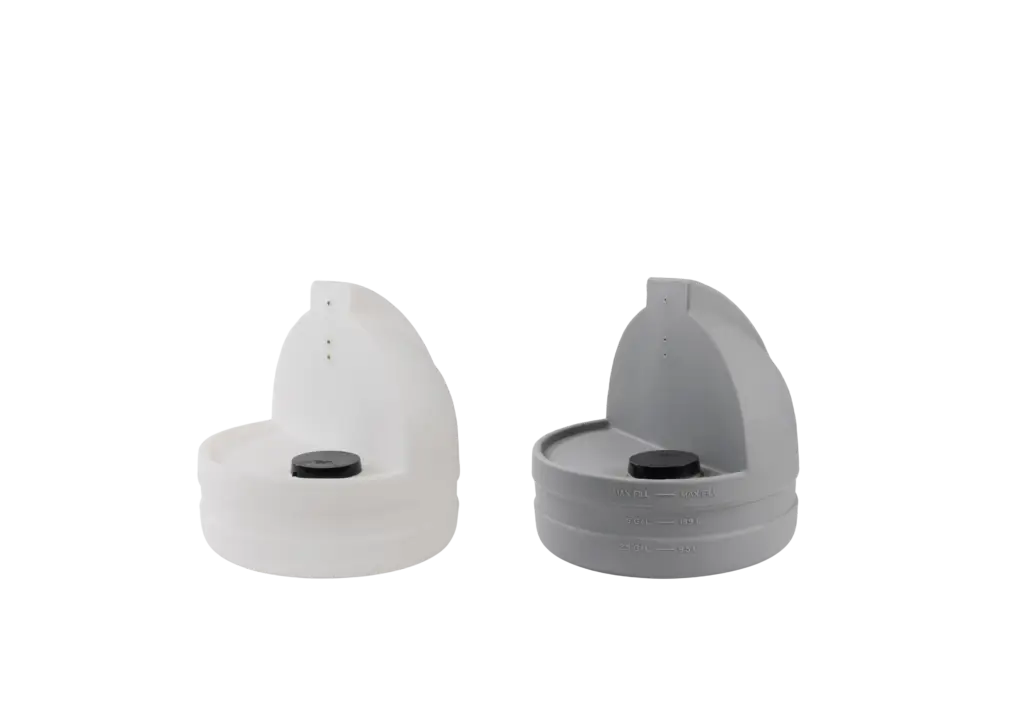

Stenner offers the tanks in UV resistant gray or translucent white. Select from 3 sizes:

  • 7.5-gallon (28.4 liters)
  • 15-gallon (56.8 liters)
  • 30-gallon (113.6 liters)

Additional parts are not needed when purchasing a tank for an existing Classic single head adjustable or single head fixed, SVP or M128 pump. If selecting a tank for an existing Econ FP, Econ T or Stennicator, a mounting kit is required, part number EC303. The same mounting kit can be used to attach an Econ pump to a wall.

A Stenner single head pump is installed on the tank with the pump head positioned away from or below the pump body.

 Tank 7.5, 15 & 30-gallon; gray or white

Installation Instructions
Spec Sheet

pdficon_smallTo view these documents, you need Adobe Acrobat Reader. You can download a free copy from the Adobe website.
