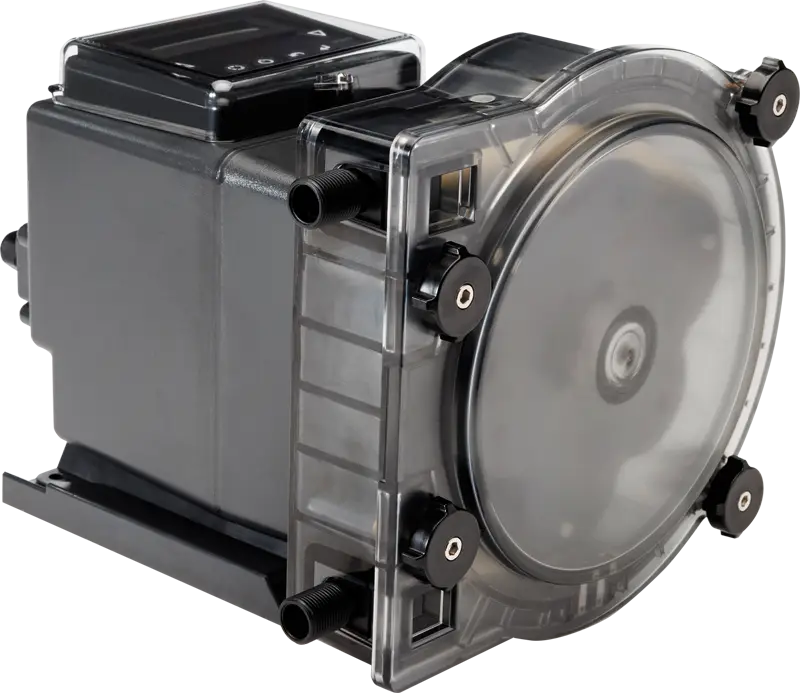

Smart peristaltic metering pump interfaces with process control systems

Highlights

  • Leak detection
  • Backup pump capability
  • Three output relays
  • Tube change timer
  • Enclosed housing, NEMA 4X
  • Simple tube replacement
  • 2 year warranty

Designed for Demanding Applications

The S Series is a smart peristaltic metering pump designed to interface with process control systems utilizing a 4-20mA output signal and three output relays.  The rugged construction includes a totally enclosed housing built to NEMA 4x.  Select from 9 modes of operation and several performance indicators to communicate the pump status. Password protection prevents unauthorized access to the programmed settings. Program the transfer function to activate a relay to start a second S Series as a backup to the primary pump. SEE PROGRAMMING VIDEO. The pump is Modbus capable with the accessory kit MOD100.

The identifying item number begins with S30, S40, or S50.

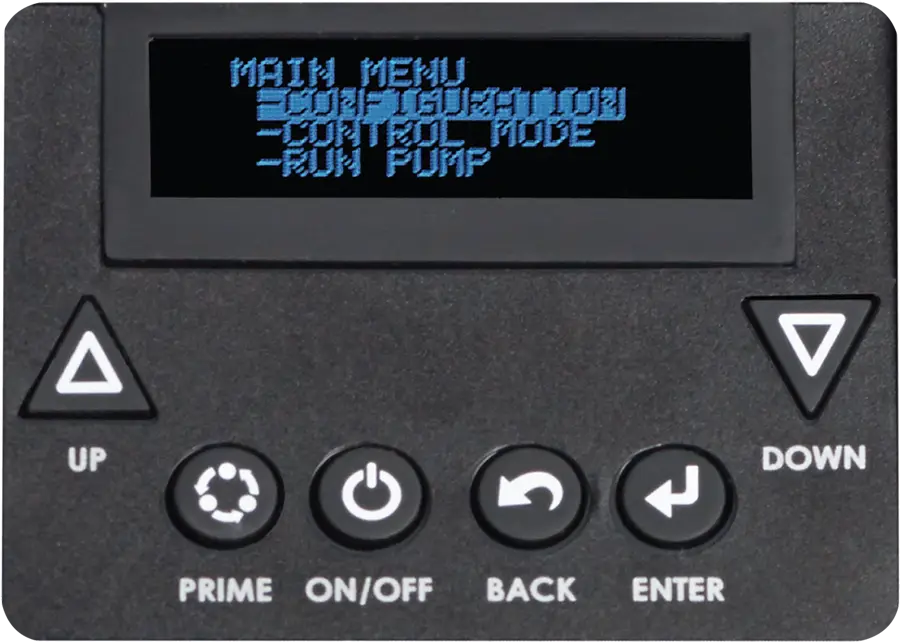

The OLED operating display is easy to navigate with intuitive programming. Select from the various modes of operation:
– 4-20mA – scalable, invertible  SEE PROGRAMMING VIDEO
– 0-10VDC – scalable, invertible
– Pulse
– Hall Effect
– PPM Feed Constant Flow – Flow Switch
– PPM Feed Variable Flow – Hall Effect
– Manual
– 7 Day/24 Hour Timer
– Cycle Timer

The pump can be programmed to respond based on a selected pump condition such as tube leak SEE PROGRAMMING VIDEO, tube change, standby, repeat pulse, run, mode change, low or high signal, low or high flow, drive fault, signal overrun, transfer and off.

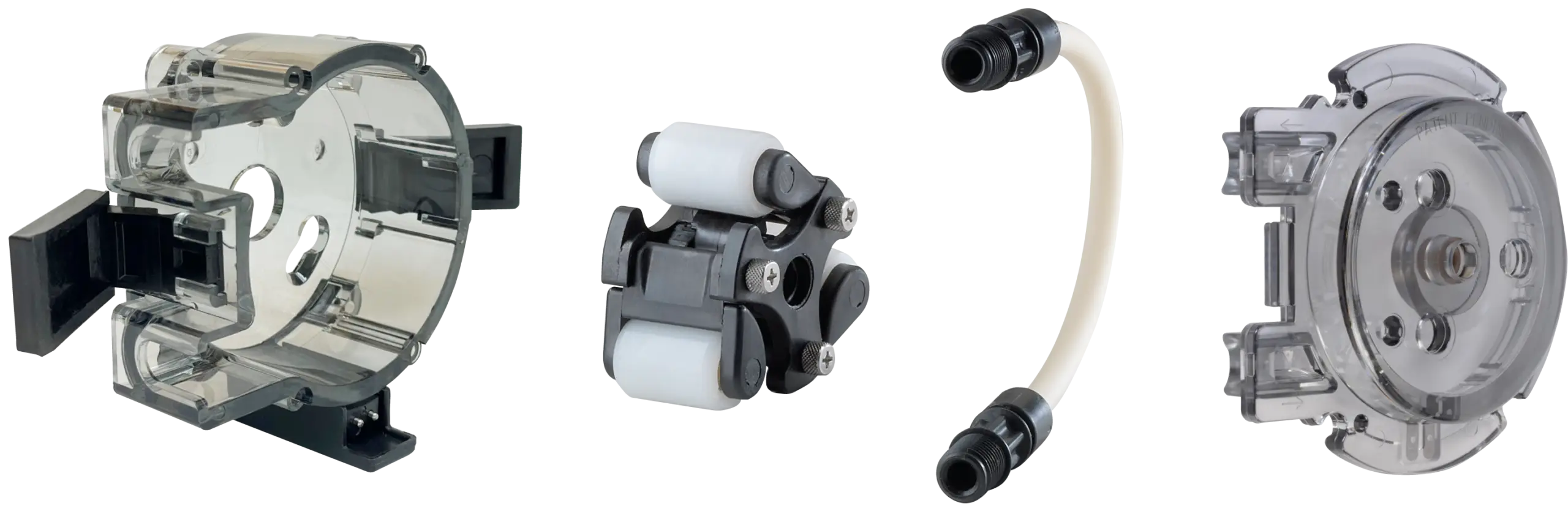

Agency listings include NEMA 4X, NSF 61 & 372, cULus indoor/outdoor; CE IP65 and NSF 50 are also available on certain models.  The brushless DC motor is equipped with ball bearing support and the switch power mode offers energy efficiency. The splined shaft designed pump head and roller assembly allow smooth installation and replacement.

Applications

Stenner Pumps – Built with A Strong Work Ethic

  • Self-priming against maximum working pressure
  • Can inject off-gassing solutions
  • No vapor lock or loss of prime
  • Simples tube replacement
  • Solid one piece tube construction
  • Tube lubrication not required
  • Three point roller design assists with anti-siphoning
  • Output reproducibility
  • Output volume not affected by back pressure
  • Foot, prime or de-gassing valve not required



Flow Rate Outputs

Pump
Prefix
Pump Tube Turndown
Ratio
Gallons
per Day
Gallon
per Hour
Ounces
per Hour
Ounces
per Minute
Liters per
Day
Liters per
Hour
Milliliters
per Hour
Milliliters
per Minute
25 psi (1.7 bar) max. Approximate Output @ 50/60Hz
S3003 3 100:1 0.40-40.0 0.017-1.67 2.13-213.0 0.036-3.56 1.51-151.0 0.063-6.31 63.09-6309.0 1.05-105.0
S3004 4 100:1 0.60-60.0 0.025-2.50 3.20-320.0 0.053-5.33 2.27-227.0 0.095-9.46 94.64-9464.0 1.58-158.0
S3005 5 100:1 0.85-85.0 0.035-3.54 4.53-453.0 0.076-7.56 3.22-322.0 0.134-13.41 134.07-13407.0 2.23-223.0
S405X
5X 100:1 1.5-150.0 0.06-6.25 8.0-800.0 0.13-13.33 5.7-567.0 0.24-23.66 236.59-23,659.0 3.94- 94.0
S505G 5G 100:1 3.2-315.0 0.133-13.13 17.07-1680.0 0.284-28.00 12.1-1192.0 0.505-49.68 504.72-49684.0 8.41-828.0
100 psi (6.9 bar) max. Approximate Output @ 50/60Hz
S3001 1 100:1 0.05-5.0 0.002-0.21 0.27-27.0 0.004-0.44 0.19-19.0 0.008-0.79 7.89-789.0 0.13-13.0
S3002 2 100:1 0.17-17.0 0.007-0.71 0.91-91.0 0.015-1.51 0.64-64.0 0.027- 2.68 26.81-2681.0 0.45-45.0
S3007 7 100:1 0.40-40.0 0.017-1.67 2.13-213.0 0.036-3.56 1.51-151.0 0.063-6.31 63.09-6309.0 1.05-105.0
S407X 7X 100:1 0.60-60.0 0.03-2.50 3.2-320.0 0.053-5.34 2.3-227.0 0.09-9.46 94.64 to 9464.0 1.58-158.0
S507G 7G 100:1 1.3–125.0 0.054-5.21 6.93-667.0 0.116-11.11 4.9-473.0 0.205- 19.72 205.04-19716.0 3.42-329.0
Notice
NOTICE: The information within the charts above is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs

Technical Data

Specifications
Flow Rate Output Control Varies per control mode; digital keypad
Reproducibility +/- 2%
Maximum Working Pressure 25 psi (1.7 bar), 100 psi (6.9 bar)
Maximum Operating Temperature 104°F (40°C)
Maximum Suction Lift 25 ft (7.6 m) vertical lift, based on water
Motor Type Brushless DC motor
Shaft rpm (average maximum) 45
Duty Cycle Continuous
Maximum Viscosity 1500 Centipoise
Motor Voltage (Amp Draw) 120V 60Hz 1PH (0.6); 230V 60Hz 1PH (0.3); 230V 50Hz 1PH (0.3)
Hall Effect Max. Input Frequency 100 KHz
Pulse Duration Required 10 milliseconds (minimum duration required for pump to read signal)
Power Cord Type 120V 60Hz SJTOWA; 230V 60Hz SJTOWA; 230V 50Hz H05RN-F
Power Cord Plug End 120V 60Hz 5-15P; 230V 60Hz 6-15P; 230V 50Hz CEE7/7
Power Cord Length 6 ft (1.8 m)
Classification Indoor/Outdoor



Materials of Construction
All Housings Polycarbonate
Pump Tube (S30) Santoprene®* (FDA approved) or Versilon®**
Pump Tube (S40,  S50) Santoprene®* (FDA approved)
Check Valve Duckbill (S30) Santoprene®* (FDA approved) or Pellethane®†
Ball Check Valve Components (S40, S50) Ceramic ball (FDA approved); tantalum spring; FKM
seat & O-ring

OR Ceramic ball (FDA approved); stainless steel
spring; EPDM seat; Santoprene® O-ring

Pump Head Rollers (S30, S40) Polyethylene
Pump Head Rollers (S50) Polycarbonate
Guide Rollers (S50) Polyethylene
Suction/Discharge Tubing,
Ferrules 1/4″, & 6 mm
Polyethylene (FDA approved)
Tube Fittings, Injection Fittings PVC or Polypropylene (both NSF listed)
Connecting Nuts PVC or Polypropylene (both NSF Listed)
3/8″ Adapter (S30) PVC or Polypropylene (both NSF Listed)
Suction Line Strainer and Cap PVC or Polypropylene (both NSF Listed); ceramic weight
All Fasteners Stainless steel
Pump Head Latches (S30) Polypropylene
Pump Head Thumbscrews (S40, S50) Stainless steel and PVC
Pump Head Support and Transition Sleeve (S40, S50) Santoprene®*
Tube Pull (S40, S50) PVC
Leak Detect Components (S30) Hastelloy®††
Leak Detect Components (S40, S50) Hastelloy®†† and stainless steel

*    Santoprene® is a registered trademark of Celanese International Corporation.
**  Versilon® is a registered trademark of Saint-Gobain Performance Plastics.
†   Pellethane® is a registered trademark of The Dow Company.
†† Hastelloy® is a registered trademark Haynes International, Inc.



Agency Listings

Listings vary by model.



Pump Dimensions

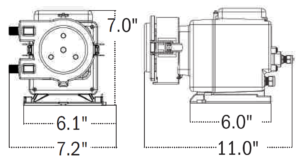

S30 Model

S40 Model

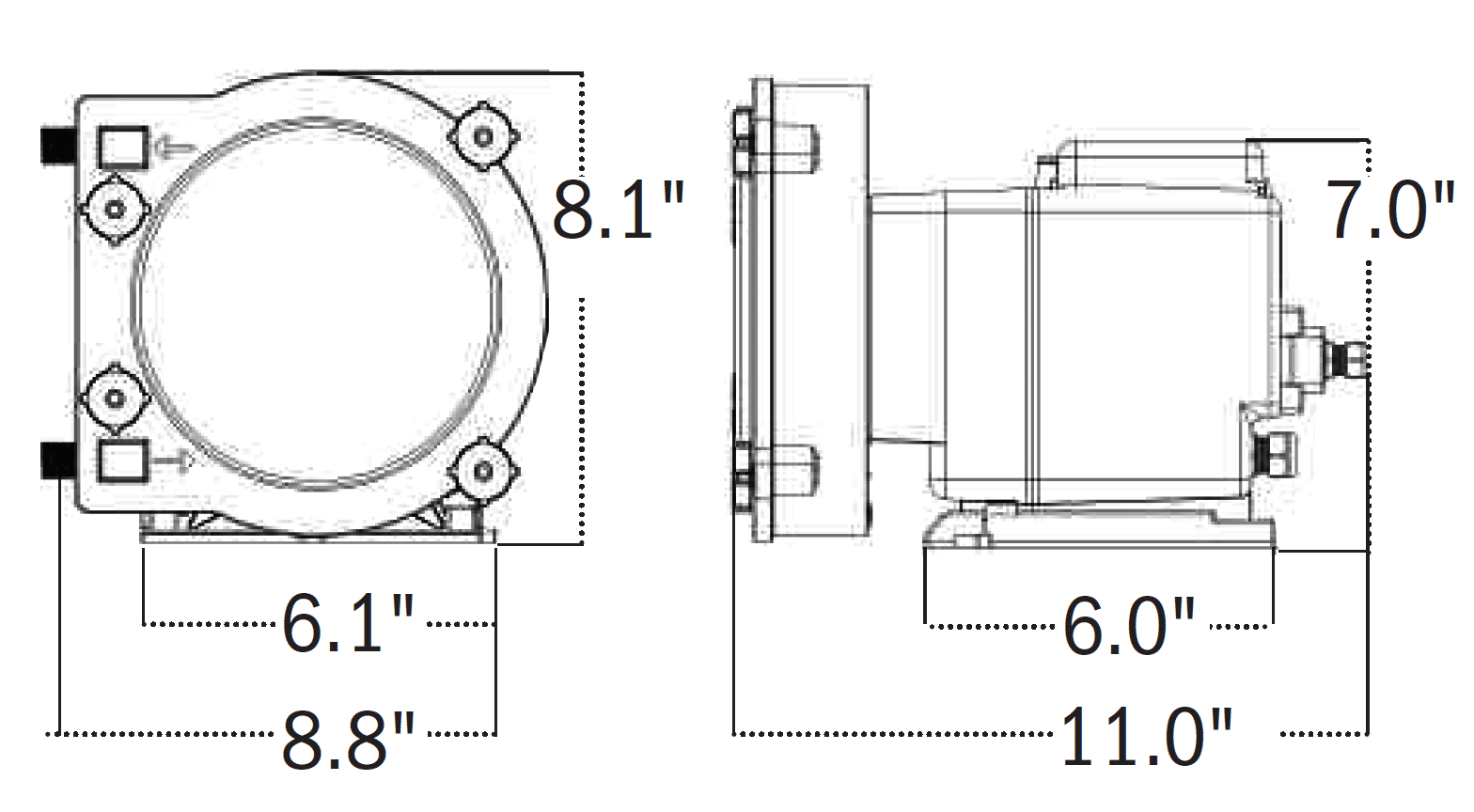

S50 Model

Box Dimensions S30, S40

14 x 9 x 10 in. (35 x 23 x 24 cm)

Box Dimensions S50

16 x 13 x 14 in. (41 x 33 x 35 cm)

Shipping Weight S30, S40

9 lbs (3.7 kg)

Shipping Weight S50

14 lbs (6.3 kg)

Dimensions & weight
